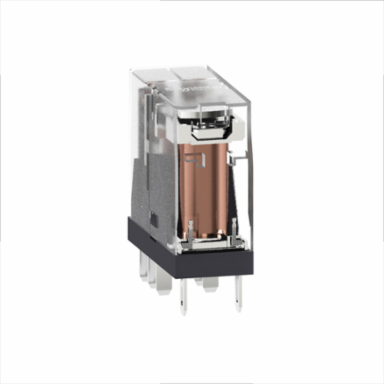

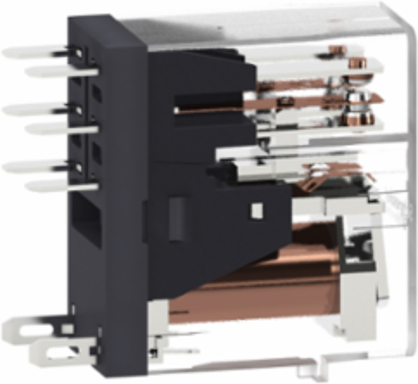

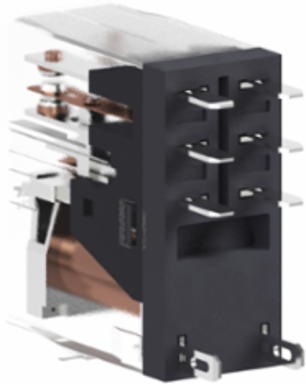

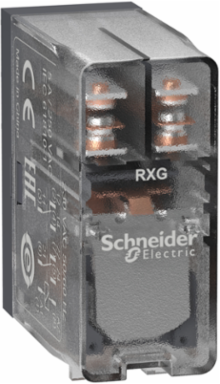

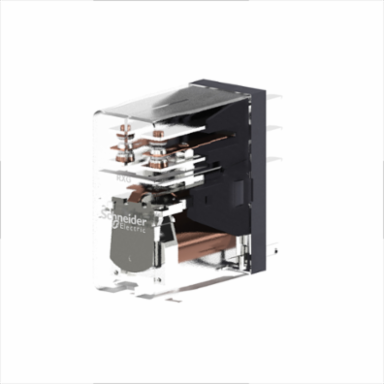

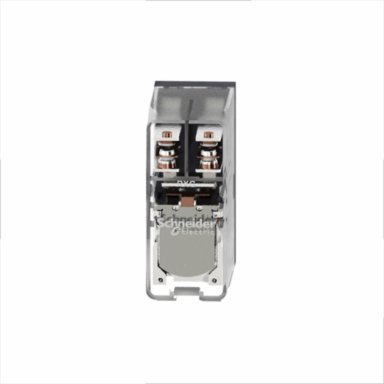

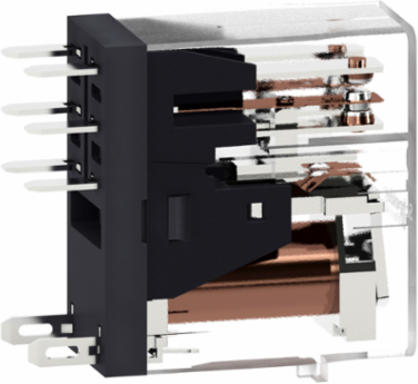

Schneider Electric RXG25B7 Harmony Electromechanical Relay, 5A, 2CO, 24V AC, IP40
- MPN: RXG25B7
- PPN: SCH-RXG25B7
- UNSPSC: 39122326
CAD
$17.52
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
"This Harmony RXG plug-in relay socket has a coil control voltage of 24V AC and has 2 changeover contacts DPDT (double pole double throw) with a rating of 5A." "It has large choice of number of contacts for high rated current use with space-saving design." "The faston pin terminal mounts quickly and securely." "It helps to reduce the size of enclosures and increase machine reliability, you can mount nearly everywhere." "The product is IP40 and has a transparent cover allowing operator to visually inspect the status of contacts." "Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs)."
Features
- Reduces size of enclosures while increase machine reliability

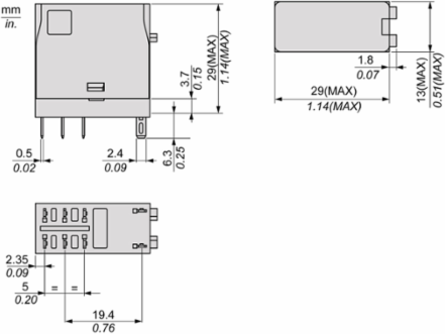

- Flexible design for space saving with 0.63in width
- Single step lockable testing function
- Easy to use
- High performance ensuring machine and system availability
- Wide range to meet most industrial applications
- Mechanical durability of 10 million cycles
- Electrical durability of 100,000 cycles
- IP40 degree of protection
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | United States |
|---|
| Weight | 219 g |
|---|
Complementary Attributes
| Ie Rated Operational Current | 10 A at 250 V (AC) conforming to IEC, 10 A at 30 V (DC) conforming to UL, 10 A at 30 V (DC) conforming to IEC10 A at 250 V (AC) conforming to UL |
|---|---|
| Ui Rated Insulation Voltage | 250 V IEC300 V CSA, 300 V UL |
| Line Rated Current | 5 A |
| Maximum Switching Voltage | 250 V AC30 V DC |
| Rated Current | 5 A |
| Uc Control Circuit Voltage | AC, 24 V |
|---|---|
| Control Circuit Type | AC |
| Maximum Switching Capacity | 1250 VA |
| Minimum Switching Capacity | 50 mW at 10 mA, 5 V DC |
| Uimp Rated Impulse Withstand Voltage | 1200 V AC between contacts with micro disconnection6000 V between coil and contact with reinforced insulation1500 V between terminals and case with basic insulation |
Important Information Attributes

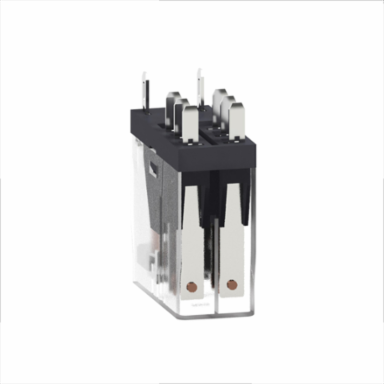

| Persona Type Ids | BM9, EU, LC, OM, OM8, PB, SC, SI, VR |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Dielectric Strength | 1000 V AC between contacts with micro disconnection, 5000 V AC between coil and contact with reinforced insulation, 3000 V AC between poles with basic insulation |
| Operating Rate | <= 1800 cycles/hour under load, <= 1800 cycles/hour under load, <= 18000 cycles/hour no-load, <= 18000 cycles/hour no-load<= 1800 cycles/hour under load, <= 1800 cycles/hour under load, <= 18000 cycles/hour no-load, <= 18000 cycles/hour no-load |
| Certificate Agency | UL, CE, EAC, CSA, DNV |
| Carbon Footprint Of The Distribution Phase A4 | 0.0282558121, 0 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase A5 | 0 kg CO2 eq., 0.0014343352 |
| Carbon Footprint Of The Use Phase B2 B3 B4 B6 | 8 kg CO2 eq., 7.502347451 |
| Local Publishable Date | 2026-08-10 |
| Weee Scope | Out |
| Scope Perimeter | At least in Europe |
| End Of Life Doc Ref | ENVEOLI2208012EN |
| Reach Full Compliance Status Id | NOT_CONTAINING_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 1930 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 1 |
| Function Option | Standard |
| Average Resistance | 260 Ohm at 23 °C +/- 10 % |
| Contacts Material | silver alloy (AgSnO2In2O3) |
| Control Type | without lockable test button |
| Insulation Resistance | 1000 MOhm at 500 V DC |
| Mechanical Durability | 10000000 cycles |
| Overvoltage Category | III |
| Product Or Component Type | plug-in relay |
| Range Of Product | Harmony Electromechanical Relays |
| Reset Time | 20 ms |
| Safety Reliability Data | B10d = 100000 |
| Shape Of Pin | flat (faston type) |
| Status Led | without |
| Test Levels | level A group mounting |
| Utilisation Coefficient | 20 % |
| Control Circuit Voltage | 24 V |
| Data Source | extrapolated product |
| Customs Code | 8536200020 |
| Warranty In Months | 18 |
| Functional Unit Quantity | 1 |
| Reference Lifetime In Y | 20 |
| Persona Type Names | Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Electrical Durability | 100000 cycles NO resistive at 55 °C, 100000 cycles NC resistive at 55 °C |
| Contacts Composition | 2 C/O |
| Drop Out Voltage Threshold | >= 0.3 Uc AC, >= 0.3 Uc AC>= 0.3 Uc AC, >= 0.3 Uc AC |
| Carbon Footprint Of The End Of Life Phase C1 To C4 | 0.0322036622, 0 kg CO2 eq. |
| Carbon Footprint Of The Manufacturing Phase A1 To A3 | 2 kg CO2 eq., 1.5984200776 |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Weee Product Category | 5 |
| Eoli Availability Display | Yes |
| Reach Full Compliance Status | Free of Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Free of Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant |
| Rohs Eur Full Compliance Status | Compliant |
| China Rohs Label | 1 |
| Without Single Use Plastic | Yes |
| Tier Id | 1 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Contact Resistance | 100 mOhm |
| Contacts Type And Composition | 2 C/O |
| Electrical Insulation Class | class F |
| Load Current | 5 A 250 V AC |
| Operating Time | 20 ms |
| Product Availability | Stock - Normally stocked in distribution facility |
| Protection Category | RT I |
| Relay Type | interface relay |
| Returnability | Yes |
| Series Name | RXG series |
| Software Version | EIME v5.7.0.4 |
| Sustainable Packaging | Yes |
| Total Lifecycle Carbon Footprint | 9 kg CO2 eq. |
| Vibration Resistance | 3 gn +/- 0.75 mm 10-150 Hz)in operation5 gn +/- 0.75 mm 10-150 Hz)not in operation |
| Database Version | 2018-09 |
| Nbr. Of Units In Pkg. | 1 |
| Ithe Conventional Enclosed Thermal Current | 5 A -40-55 °C |
| Functional Unit Description | To control a circuit by a low-power signal with complete electrical isolation between control and controlled circuits, or where several circuits must be controlled by one signal during 20 years with a 30% use rate, in compliance with French standards. |
| Functional Unit Unit | unité (unit) |
| Recyclability Potential In % | 69 |
