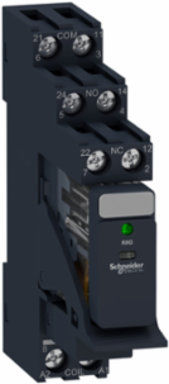

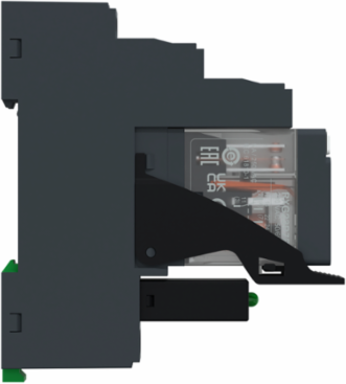

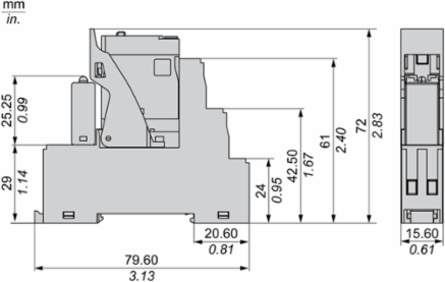

Schneider Electric RXG23P7PV Harmony Electromechanical Relay, 5A, 2 C/O, 230V AC with LED

MPN: RXG23P7PV
PPN: SCH-RXG23P7PV
UNSPSC: 39122334

$53.12

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

This interface Plug-In relay belongs to the Schneider Electric Harmony electromechanical relays range. This is a pre-assembled relay mounted on a separate contact terminal socket with integrated clamp and a varistor protection module. This is a 5A, 230Vac, 2 CO interface mechanical relay. This pre-mounted relay is a ready-to-go package saving assembly time. The relay offers LED indicator. The interface relay socket connection is by screw connector type. This pre-assembled relay weighs 0.067Kg. Its design is fit for industrial machines, packaging, textile, HVAC, automation control panels, low/medium voltage switchgear, motor controls, PLC Interfaces, power supplies, building or medical equipment, lighting controls. It conforms to international standards and certifications like IEC, UL, EAC, CSA, ROHS and REACH. It is sold in lots of 30. The RXG plug-in relays are a series of industrial plug-in relays designed for both simple and complex automation systems and available with 1 CO (10A) and 2 CO (5A) contacts.

Features

With LED
Can be expanded with protection modules
Reduces size of enclosures while increasing machine reliability
Easy to use
High performance ensuring machine and system availability
Wide range to meet most industrial applications
Mechanical durability of 10 million cycles
Electrical durability of 100,000 cycles
IP20 degree of protection

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Brazil, China, France

Weight	67 g

Complementary Attributes

Ie Rated Operational Current	10 A at 250 V (AC) conforming to IEC, 10 A at 30 V (DC) conforming to UL, 10 A at 30 V (DC) conforming to IEC10 A at 250 V (AC) conforming to UL
Control Circuit Type	AC
Maximum Switching Capacity	1250 VA AC150 W DC
Minimum Switching Capacity	50 mW at 10 mA, 5 V DC
Uimp Rated Impulse Withstand Voltage	1200 V AC between contacts with micro disconnection6000 V between coil and contact with reinforced insulation1500 V between terminals and case with basic insulation

Uc Control Circuit Voltage	AC, 230 V
Line Rated Current	5 A
Maximum Switching Voltage	250 V
Ui Rated Insulation Voltage	250 V IEC

Important Information Attributes

Persona Type Ids	BM9, EU, LC, OM, OM8, PB, SC, SI, VR
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Dielectric Strength	1000 V AC between contacts with micro disconnection, 1300 V between terminals and base with basic insulation3000 V between terminals and LTB area with basic insulation, 3000 V AC between poles with basic insulation, 5000 V AC between coil and contact with reinforced insulation
Operating Rate	<= 1800 cycles/hour under load, <= 1800 cycles/hour under load, <= 18000 cycles/hour no-load, <= 18000 cycles/hour no-load<= 1800 cycles/hour under load, <= 1800 cycles/hour under load, <= 18000 cycles/hour no-load, <= 18000 cycles/hour no-load
Control Circuit Voltage	230 V
Certificate Agency	EAC, CSA, UL, CE, DNV
Carbon Footprint Of The Distribution Phase A4	0.0086444722, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase A5	0 kg CO2 eq., 0.0004388149
Carbon Footprint Of The Use Phase B2 B3 B4 B6	12 kg CO2 eq., 11.7313594771
Local Publishable Date	2026-08-10
Weee Scope	Out
Scope Perimeter	At least in Europe
End Of Life Doc Ref	ENVEOLI2208012EN
Reach Full Compliance Status Id	NOT_CONTAINING_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	1907
China Rohs In Scope	Yes
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	1
Function Option	Standard
Average Resistance	23500 Ohm at 23 °C +/- 15 %
Contact Terminal Arrangement	separate
Contacts Type And Composition	2 C/O
Electrical Insulation Class	class F
Load Current	5 A
Operating Time	20 ms
Product Availability	Non-Stock - Not normally stocked in distribution facility
Protection Category	RT I
Relay Type	interface relay
Returnability	No
Series Name	RXG series
Software Version	EIME v5.7.0.4
Sustainable Packaging	Yes
Total Lifecycle Carbon Footprint	12 kg CO2 eq.
Vibration Resistance	3 gn +/- 1.5 mm 10-150 Hz)in operation5 gn +/- 1.5 mm 10-150 Hz)not in operation
Data Source	extrapolated product
Customs Code	8536490080
Warranty In Months	18
Functional Unit Quantity	1
Reference Lifetime In Y	20
Recyclability Potential In %	69

Persona Type Names	Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market Segmentation	Commercial, Industrial
Electrical Durability	100000 cycles NO resistive at 55 °C, 100000 cycles NC resistive at 55 °C
Connections Terminals	screw connectors, connector, 1 x 0.25...1 x 2.5 mm² 22 AWG...14 AWG) flexible with cable endconnector, 2 x 0.25...2 x 1 mm² 22 AWG...17 AWG) flexible with cable endconnector, 1 x 0.5...1 x 2.5 mm² 20 AWG...14 AWG) solid without cable endconnector, 2 x 0.5...2 x 1.5 mm² 20 AWG...16 AWG) solid without cable end
Control Circuit Type2	AC
Drop Out Voltage Threshold	>= 0.3 Uc AC, >= 0.3 Uc AC>= 0.3 Uc AC, >= 0.3 Uc AC
Carbon Footprint Of The End Of Life Phase C1 To C4	0.009852262, 0 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase A1 To A3	0.5 kg CO2 eq., 0.4890143616
Local Data Status	Publishable
Return Indicator	N
Weee Product Category	5
Eoli Availability Display	Yes
Reach Full Compliance Status	Free of Substances of Very High Concern above the threshold
Reach Compliance Directive	Free of Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant
Rohs Eur Full Compliance Status	Compliant
China Rohs Label	1
Without Single Use Plastic	Yes
Tier Id	1
Function Option Id	STANDARD
Product Kit Identifier	N
Contact Resistance	100 mOhm
Contacts Material	silver alloy (AgSnO2In2O3)
Control Type	without lockable test button
Insulation Resistance	1000 MOhm at 500 V DC
Mechanical Durability	10000000 cycles
Overvoltage Category	III
Product Or Component Type	pre-assembled plug-in relay with socket
Range Of Product	Harmony Electromechanical Relays
Reset Time	20 ms
Safety Reliability Data	B10d = 100000
Shape Of Pin	flat (faston type)
Status Led	with
Test Levels	level A group mounting
Utilisation Coefficient	20 %
Database Version	2018-09
Nbr. Of Units In Pkg.	1
Ithe Conventional Enclosed Thermal Current	5 A
Functional Unit Description	To control a circuit by a low-power signal with complete electrical isolation between control and controlled circuits, or where several circuits must be controlled by one signal during 20 years with a 30% use rate, in compliance with French standards.
Functional Unit Unit	unité (unit)
Energy Consumption On Product Lifetime In Kwh	23.944

Environment Attributes Main

Ambient Air Temperature For Operation	-40-70 °C, -40-70 °C
Take Back	No
Recycled Metal Content At Cr Level	0 %
Toxic Heavy Metal Free	Yes
Carbon Footprint	12.2393093878
Environmental Disclosure	ENVPEP2208012EN
Ip Degree Of Protection	IP20
Packaging Without Single Use Plastic	Yes
Reach Regulation	Free of Substances of Very High Concern above the threshold
Pep Code	ENVPEP2208012EN
Pcr Version	PCR-ed3-EN-2015 04 02
Type Of Verification For The Pep	Independent internal review

Ambient Air Temperature For Storage	-40-85 °C, -40-85 °C
Reach Free Shvc	Yes
China Rohs Regulation	X
Mercury Free	Yes
Circularity Profile	ENVEOLI2208012EN
Eu Rohs Directive	Compliant
Packaging Made With Recycled Cardboard	Yes
Reach Free Of Svhc	Yes
Relative Humidity	10-85 %
Pep Verification Date	2018-09-01
Psr Version	PSR-0005-ed2-EN-2016 03 29
