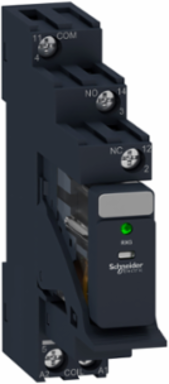

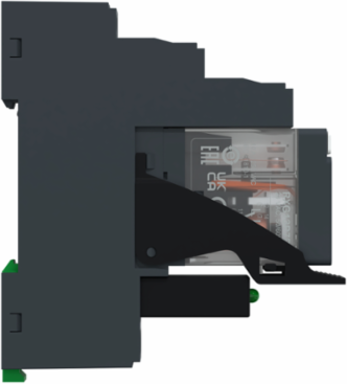

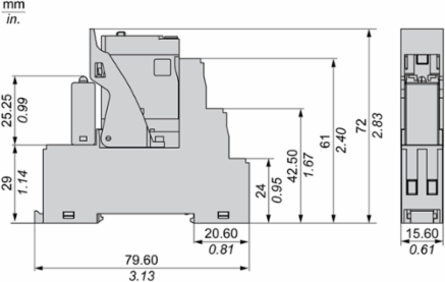

Schneider Electric RXG13P7PV Harmony Interface Relay, 10A, 1 CO, 230V AC with LED Indicator
- MPN: RXG13P7PV
- PPN: SCH-RXG13P7PV
CAD
$47.60
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This interface Plug-In relay belongs to the Schneider Electric Harmony electromechanical relays range. This is a pre-assembled relay mounted on a separate contact terminal socket with integrated clamp and a varistor protection module. This is a 10A, 230Vac, 1 CO interface mechanical relay. This pre-mounted relay is a ready-to-go package saving assembly time. The relay offers LED indicator. The interface relay socket connection is by screw connector type. This pre-assembled relay weighs 0.059Kg. Its design fit for industrial machines, packaging, textile, HVAC, automation control panels, low/medium voltage switchgear, motor controls, PLC Interfaces, power supplies, building or medical equipment, lighting controls. It conforms to international standards and certifications like IEC, UL, EAC, CSA, ROHS and REACH. It is sold in lots of 30. The RXG plug-in relays are a series of industrial plug-in relays designed for both simple and complex automation systems and available with 1 CO (10A) and 2 CO (5A) contacts.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Brazil, China, France |
|---|
Complementary Attributes
| Control Circuit Type | AC |
|---|---|
| Maximum Switching Capacity | 2500 VA AC300 W DC |
| Minimum Switching Capacity | 500 mW at 100 mA, 5 V DC |
| Line Rated Current | 10 A |
|---|---|
| Maximum Switching Voltage | 250 V |
Important Information Attributes
| Persona Type Ids | BM9, EU, LC, OM, OM8, PB, SC, SI, VR |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Dielectric Strength | 1000 V AC between contacts with micro disconnection, 1300 V between terminals and base with basic insulation3000 V between terminals and LTB area with basic insulation, 5000 V AC between coil and contact with reinforced insulation |
| Operating Rate | <= 1800 cycles/hour under load, <= 1800 cycles/hour under load, <= 18000 cycles/hour no-load, <= 18000 cycles/hour no-load<= 1800 cycles/hour under load, <= 1800 cycles/hour under load, <= 18000 cycles/hour no-load, <= 18000 cycles/hour no-load, <= 1800 cycles/hour under load, <= 1800 cycles/hour under load, <= 18000 cycles/hour no-load, <= 18000 cycles/hour no-load<= 1800 cycles/hour under load, <= 1800 cycles/hour under load, <= 18000 cycles/hour no-load, <= 18000 cycles/hour no-load |
| Certificate Agency | EAC, CSA, UL, CE, DNV |
| [Uc] Control Circuit Voltage | 24 V AC, 230 V |
| Drop-out Voltage Threshold | >= 0.3 Uc AC, >= 0.3 Uc AC>= 0.3 Uc AC, >= 0.3 Uc AC, >= 0.3 Uc AC, >= 0.3 Uc AC>= 0.3 Uc AC, >= 0.3 Uc AC |
| Carbon Footprint Of The End-of-life Phase [C1 To C4] | 0.0086758725, 0 kg CO2 eq. |
| Carbon Footprint Of The Manufacturing Phase [A1 To A3] | 0.4 kg CO2 eq., 0.4306245871 |
| Local Data Status | Publishable |
| Return Indicator | N |
| Stock Policy | 2 |
| Weee Product Category | 5 |
| Eoli Availability Display | Yes |
| Reach Full Compliance Status | Free of Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Free of Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant |
| Rohs Eur Full Compliance Status | Compliant |
| China Rohs Label | 1 |
| Without Single Use Plastic | Yes |
| Tier Id | 1 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Contact Resistance | 100 mOhm |
| Contacts Material | silver alloy (AgSnO2In2O3) |
| Control Type | without lockable test button |
| Insulation Resistance | 1000 MOhm at 500 V DC |
| Mechanical Durability | 10000000 cycles |
| Overvoltage Category | III |
| Product Or Component Type | pre-assembled plug-in relay with socket |
| Range Of Product | Harmony Electromechanical Relays |
| Reset Time | 20 ms |
| Safety Reliability Data | B10d = 100000 |
| Shape Of Pin | flat (faston type) |
| Status Led | with |
| Test Levels | level A group mounting |
| Utilisation Coefficient | 20 % |
| Control Circuit Voltage 10 | 24 V AC |
| Database Version | 2018-09 |
| Pcr Version | PCR-ed3-EN-2015 04 02 |
| Type Of Verification For The Pep | Independent internal review |
| Functional-unit Description | To control a circuit by a low-power signal with complete electrical isolation between control and controlled circuits, or where several circuits must be controlled by one signal during 20 years with a 30% use rate, in compliance with French standards. |
| Functional-unit Unit | unité (unit) |
| Energy Model - Manufacturing [A1-a3] | Energy model used: China |
| Energy Model - Use [B6] | Electricity mix; AC; <lt/> 1kV; EU-27 |
| Recyclability Potential In % | 69 |
| [Ui] Rated Insulation Voltage | 250 V IEC |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Customs Code | 8536490050 |
| Persona Type Names | Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Electrical Durability | 100000 cycles NO resistive at 55 °C, 100000 cycles NC resistive at 55 °C |
| Maximum Switching Capacity 1 | 2500 VA AC, 300 W DC |
| [Ie] Rated Operational Current | 10 A at 250 V (AC) conforming to IEC, 10 A at 30 V (DC) conforming to UL, 10 A at 30 V (DC) conforming to IEC10 A at 250 V (AC) conforming to UL |
| Connections - Terminals | screw connectors, connector, 1 x 0.25...1 x 2.5 mm² 22 AWG...14 AWG) flexible with cable endconnector, 2 x 0.25...2 x 1 mm² 22 AWG...17 AWG) flexible with cable endconnector, 1 x 0.5...1 x 2.5 mm² 20 AWG...14 AWG) solid without cable endconnector, 2 x 0.5...2 x 1.5 mm² 20 AWG...16 AWG) solid without cable end |
| Carbon Footprint Of The Distribution Phase [A4] | 0.0076122964, 0 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase [A5] | 0 kg CO2 eq., 0.0003864191 |
| Carbon Footprint Of The Use Phase [B2 B3 B4 B6] | 12 kg CO2 eq., 12.1948912418 |
| Local Publishable Date | 2026-01-12 |
| Stocking Flag | Y |
| Weee Scope | Out |
| Scope Perimeter | At least in Europe |
| End Of Life Doc Ref | ENVEOLI2208012EN |
| Reach Full Compliance Status Id | NOT_CONTAINING_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 1907 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 1 |
| Function Option | Standard |
| Average Resistance | 23500 Ohm at 23 °C +/- 15 % |
| Contact Terminal Arrangement | separate |
| Contacts Type And Composition | 1 C/O |
| Electrical Insulation Class | class F |
| Load Current | 10 A |
| Operating Time | 20 ms |
| Product Availability | Non-Stock - Not normally stocked in distribution facility |
| Protection Category | RT I |
| Relay Type | interface relay |
| Returnability | No |
| Series Name | RXG series |
| Software Version | EIME v5.7.0.4 |
| Sustainable Packaging | Yes |
| Total Lifecycle Carbon Footprint | 13 kg CO2 eq. |
| Vibration Resistance | 3 gn +/- 1.5 mm 10-150 Hz)in operation5 gn +/- 1.5 mm 10-150 Hz)not in operation |
| Pep Code | ENVPEP2208012EN |
| Pep Verification Date | 2018-09-01 |
| Psr Version | PSR-0005-ed2-EN-2016 03 29 |
| Data Source | extrapolated product |
| Functional-unit Quantity | 1 |
| Reference Lifetime In Y | 20 |
| Energy Model - Installation [A5] | Electricity mix; AC; <lt/> 1kV; EU-27 |
| Energy Model - End Of Life [C1-c4] | Electricity mix; AC; <lt/> 1kV; EU-27 |
| [Ithe] Conventional Enclosed Thermal Current | 10 A |
| [Uimp] Rated Impulse Withstand Voltage | 1200 V AC between contacts with micro disconnection6000 V between coil and contact with reinforced insulation1500 V between terminals and case with basic insulation |
| Package Weight(Lbs) | 59.000 g |
| Warranty (In Months) | 18 |
Environment Attributes Main
| Ambient Air Temperature For Operation | -40-70 °C, -40-70 °C, -40-70 °C, -40-70 °C |
|---|---|
| Take Back | No |
| Recycled Metal Content At Cr Level | 0 % |
| Toxic Heavy Metal Free | Yes |
| Carbon Footprint | 12.6421904169 |
| Environmental Disclosure | ENVPEP2208012EN |
| Ip Degree Of Protection | IP20 |
| Packaging Without Single Use Plastic | Yes |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Pep Code | ENVPEP2208012EN |
| Pcr Version | PCR-ed3-EN-2015 04 02 |
| Type Of Verification For The Pep | Independent internal review |
| Ambient Air Temperature For Storage | -40-85 °C, -40-85 °C, -40-85 °C, -40-85 °C |
|---|---|
| Reach Free Shvc | Yes |
| China Rohs Regulation | X |
| Mercury Free | Yes |
| Circularity Profile | ENVEOLI2208012EN |
| Eu Rohs Directive | Compliant |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Free Of Svhc | Yes |
| Relative Humidity | 10-85 % |
| Pep Verification Date | 2018-09-01 |
| Psr Version | PSR-0005-ed2-EN-2016 03 29 |
General Attributes
| Product Or Component Type | pre-assembled plug-in relay with socket |
|---|
| Range Of Product | Harmony Electromechanical Relays |
|---|
ETIM
| ETIM 8 | EC001437 |
|---|
| ETIM 9 | EC001437 |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
Overview Attributes
| Device Presentation | complete product |
|---|
| Presentation Of Legend | with |
|---|
