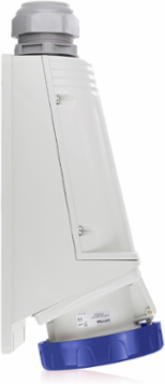

Leviton W3125-S9 125 Amp International Pin & Sleeve Outlet, 200-250 Volt, IP66/IP67, Blue
- MPN: W3125-S9
- UPC: 078477679715
- PPN: LEV-W3125-S9
CAD
$472.79
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

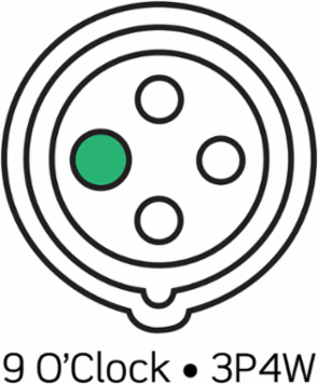

125 Amp, 200-250 Volt, 3P+E (3P, 4W), Clock Position 9, IEC/EN 60309-1 & 60309-2, International Configuration Surface Mounting Socket Outlet, Industrial Grade, IP66/67, Watertight - BLUE
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Italy
RoHS CompliantTrue
Standards and Certifications
- CE
- Marked
- NOM Certified
- Yes
IEC Rating60309-1 and 60309-2
RETIE CertifiedYes
Material Specifications
- Contacts
- Nickel Plated Brass
HousingHalogen-free engineering polymer
Mechanical Specifications
- Terminal Accom.
- #4 - 2/0 AWG
Product Features
- Color
- Blue
Device TypeReceptacle
Environmental Specifications
- IK Rating
- IK08
- Operating Temperature
- -25°C to 40°C
IP RatingIP66/IP67
Electrical Specifications
- Amperage
- 125 A
- Pole
- 3
- Wire
- 4
Frequency50/60Hz
Voltage200/250 VAC
