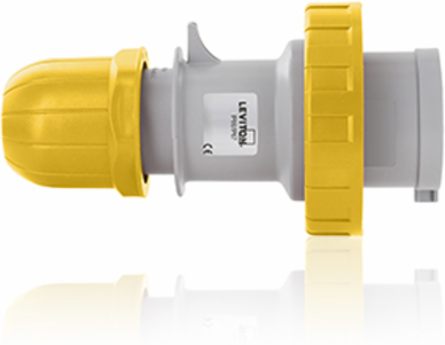

Leviton W232-P4 International Pin & Sleeve Plug 32 Amp 100-130 Volt IP66/IP67 Yellow
- MPN: W232-P4
- UPC: 078477675724
- PPN: LEV-W232-P4
CAD
$189.34
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

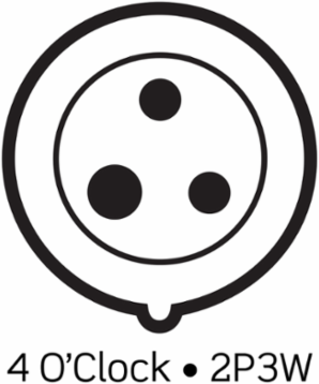

32 Amp, 100-130 Volt, 2P+E (2P, 3W), Clock Position 4, IEC/EN 60309-1 & 60309-2, International Configuration Plug, Industrial Grade, IP66/67, Watertight - YELLOW
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Slovakia |
|---|
| RoHS Compliant | True |
|---|
Standards and Certifications
| CE | Marked |
|---|---|
| NOM Certified | Yes |
| IEC Rating | 60309-1 and 60309-2 |
|---|---|
| RETIE Certified | Yes |
Material Specifications
| Contacts | Nickel Plated Brass |
|---|
| Housing | Halogen-free engineering polymer |
|---|
Mechanical Specifications
| Cord Grip Range (in) | .453 - .827 |
|---|
| Terminal Accom. | 14-10 AWG |
|---|
Product Features
| Color | Yellow |
|---|---|
| Device Type | Plug |
| Configuration | International |
|---|
Environmental Specifications
| IK Rating | IK08 |
|---|---|
| Operating Temperature | -25°C to 40°C |
| IP Rating | IP66/IP67 |
|---|
Electrical Specifications
| Amperage | 32 A |
|---|---|
| Pole | 2 |
| Wire | 3 |
| Frequency | 50/60Hz |
|---|---|
| Voltage | 100/130 VAC |
