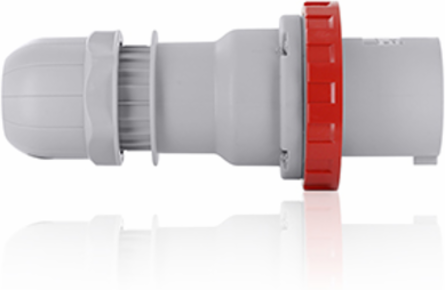

Leviton W463-P6 International Pin & Sleeve Plug, 63 Amp, 346-415 Volt, IP66, Red
- MPN: W463-P6
- UPC: 078477676608
- PPN: LEV-W463-P6
CAD
$227.09
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

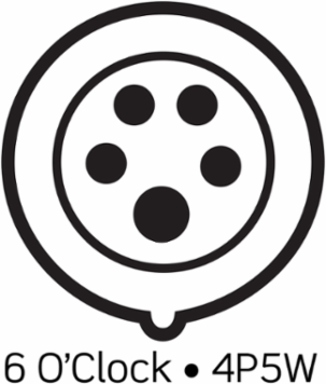

63 Amp, 346-415 Volt, 3P+N+E (4P, 5W), Clock Position 6, IEC/EN 60309-1 & 60309-2, International Configuration Plug, Industrial Grade, IP66/667, Watertight - RED
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Italy |
|---|
| RoHS Compliant | True |
|---|
Standards and Certifications
| CE | Marked |
|---|---|
| NOM Certified | Yes |
| IEC Rating | 60309-1 and 60309-2 |
|---|---|
| RETIE Certified | Yes |
Material Specifications
| Contacts | Nickel Plated Brass |
|---|
| Housing | Halogen-free engineering polymer |
|---|
Mechanical Specifications
| Cord Grip Range (in) | .669 - 1.22 |
|---|
| Terminal Accom. | #10 - #6 AWG |
|---|
Product Features
| Color | Red |
|---|---|
| Device Type | Plug |
| Configuration | International |
|---|
Environmental Specifications
| IK Rating | IK08 |
|---|---|
| Operating Temperature | -25°C to 40°C |
| IP Rating | IP66/IP67 |
|---|
Electrical Specifications
| Amperage | 63 A |
|---|---|
| Pole | 4 |
| Wire | 5 |
| Frequency | 50/60Hz |
|---|---|
| Voltage | 346-415 VAC |
