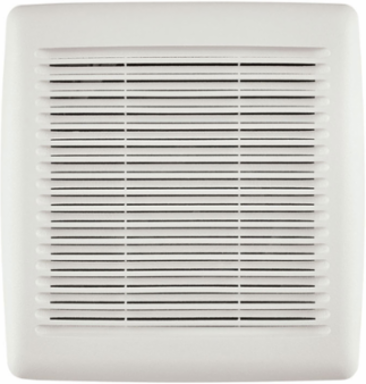

NuTone AE80B InVent™ Series Single-Speed Fan 80 CFM, 1.5 Sones, ENERGY STAR® Certified
- MPN: AE80B
- UPC: 026715236008
- PPN: BRO-AE80B
CAD
$112.59
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This patent-pending series marks a revolution of our mid-range ventilation fans. It gives professionals the flexibility to handle new construction or room-side retrofit installations from one hard-working product line with a full range of operating points. Innovations include foldable mounting ears and new damper and housing technology that improve building airtightness like never before. And all with new grille designs that are at home in any decor.
Features
- Powerful ventilation reduces humidity to quickly eliminate fogged mirrors and manage moisture, so your vision will always be clear and your surroundings will always be comfortable
- Retrofit installations can be done entirely from the room-side – no attic access required. This means a faster, easier installation, so you can move on to something else
- With our TrueSeal™ Damper Technology, InVent fans reduce air leakage by up to 50%* compared to competitive models, resulting in better home performance via blower door tests and reducing cold and warm air backdrafts
- EzDuct™ Connector can be installed room-side with no attic access required, fan housing connection have never been easier
- UL Listed for use over tubs and showers with a GFCI circuit; so you can capture the steam before it spreads throughout the room by locating your fan exactly where you need it the most
- Can be installed in a wall if mounted 8-ft. or more above the floor
Specifications
Key Specifications
| CFM | 80 |
|---|---|
| Sones | 1.5 |
| Duct Diameter | 4" |
| Housing Length | 9-1/4" |
| Grille Length | 11-3/8" |
| Watts | 26.9 |
| Warranty | 1 year limited |
| Grille Width | 12" |
| Motor Engineered for Continuous Operation | Yes |
| Voltage | 120 |
| Recommended Room Size (Sq. Ft.) | 75 |
|---|---|
| Room Side Installation | Yes |
| Housing Height | 5-3/4" |
| Housing Width | 10" |
| Rated Amps | 0.3 |
| ENERGY STAR® certified product | Yes |
| Nightlight | No |
| Minimum Construction Space Required | 2" x 6" |
| Radiation Damper Available | Yes |
| UL Listed | Yes |
