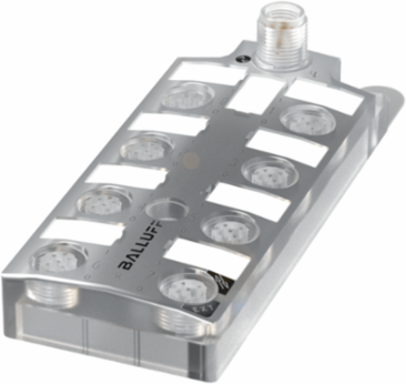

Balluff BNI IOL-311-002-K006 IO-Link sensor/actuator hubs BNI IOL-311-002-K006
- MPN: BNI IOL-311-002-K006
- PPN: BAL-BNI00AF
CAD
$342.80
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Our I/O modules with their robust housings are suitable for use in a harsh industrial environment. The I/O hubs are based on M12 or M8 plug connections and are easy and economical to install and maintain.
Documentation & Downloads
Specifications
Key Specifications
- Interface
- IO-Link 1.1
- Connection (COM 1)
- M12x1-Male, 4-pin, A-coded
- Digital inputs
- 16x NPN, Type 3
- Configurable inputs/outputs
- yes
- Output current max.
- 350 mA
- Dimension
- 50 x 30.8 x 115 mm
- IP rating
- IP67 when threaded in
- Process data cycle min.
- 3.5 ms
- Process data OUT
- 2 bytes
Operating voltage Ub18-30.2 VDC
Connection ports8x M12x1-Female, 5-pin, A-coded
Digital outputs16x NPN
Additional functionExtension port
Housing materialPA, Transparent
Ambient temperature-5-55 °C
Transfer rateCOM2 (38.4 kBaud)
Process data IN2 bytes
