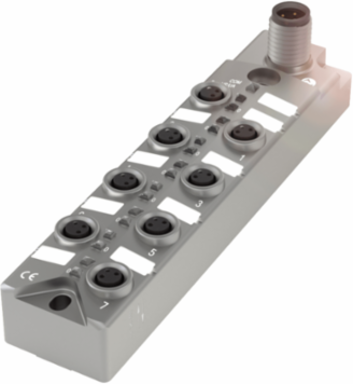

Balluff BNI IOL-102-002-Z019 IO-Link sensor/actuator hubs BNI IOL-102-002-Z019
- MPN: BNI IOL-102-002-Z019
- PPN: BAL-BNI0099
CAD
$457.33
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Our I/O modules with their robust housings are suitable for use in a harsh industrial environment. The I/O hubs are based on M12 or M8 plug connections and are easy and economical to install and maintain.
Documentation & Downloads
Specifications
Key Specifications
- Interface
- IO-Link 1.1
- Connection (COM 1)
- M12x1-Male, 4-pin, A-coded
- Digital inputs
- 8x PNP, Type 3
- Additional function
- Extension port
- Dimension
- 30 x 32.5 x 132 mm
- IP rating
- IP67 when threaded in
- Process data cycle min.
- 3.2 ms
Operating voltage Ub18-30.2 VDC
Connection ports8x M8x1-Female, 3-pin
Configurable inputs/outputsno
Housing materialZinc, Die casting
Ambient temperature-5-70 °C
Transfer rateCOM2 (38.4 kBaud)
Process data IN1 byte Input
