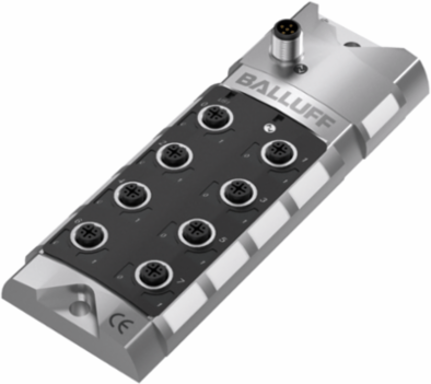

Balluff BNI IOL-104-000-Z012 IO-Link sensor/actuator hubs BNI IOL-104-000-Z012
- MPN: BNI IOL-104-000-Z012
- PPN: BAL-BNI0032
CAD
$330.33
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Our I/O modules with their robust housings are suitable for use in a harsh industrial environment. The I/O hubs are based on M12 or M8 plug connections and are easy and economical to install and maintain.
Documentation & Downloads
Specifications
Key Specifications
- Interface
- IO-Link 1.0
- Connection (COM 1)
- M12x1-Male, 4-pin, A-coded
- Digital inputs
- 16x PNP, Type 2
- Housing material
- Zinc, Die casting
- Ambient temperature
- -5-70 °C
- Transfer rate
- COM2 (38.4 kBaud)
- Process data IN
- 2 bytes
Operating voltage Ub18-30.2 VDC
Connection ports8x M12x1-Female, 5-pin, A-coded
Configurable inputs/outputsno
Dimension68 x 31.8 x 181.5 mm
IP ratingIP67 when threaded in
Process data cycle min.3.0 ms
