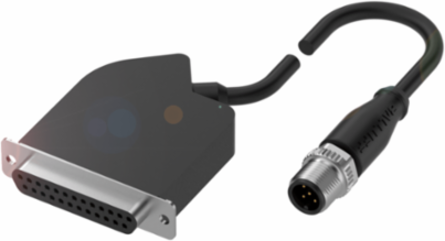

Balluff BNI IOL-751-V11-K007 IO-Link valve interface BNI IOL-751-V11-K007
Balluff BNI IOL-751-V11-K007 IO-Link valve interface BNI IOL-751-V11-K007
- MPN: BNI IOL-751-V11-K007
- PPN: BAL-BNI006T
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$336.66/ EA
Description
You can use the advantages of IO-Link even with our valve interfaces. This is because decentrally installed valve terminals and the control level can easily be connected using these components.
Specifications
Specifications
- Version
- Power Aux valve terminal connector
- Interface
- IO-Link 1.1
- Connection (COM 1)
- M12x1-Male, 5-pin, A-coded
- Outputs, number
- 16
- Current sum UA, actuator
- 1.2 A
- Housing material
- PA
- Ambient temperature
- -5-55 °C
- Transfer rate
- COM2 (38.4 kBaud)
- Process data OUT
- 2 bytes
ApplicationSMC VQC 1000/2000/4000
Operating voltage Ub18-30.2 VDC
Cable length L0.6 m
Output current max. UA, actuator400 mA
Function4-pin connection, Power Aux on Pin 2
Dimension53 x 61 x 12.5 mm
IP ratingIP40 plugged in
Process data cycle min.3.0 ms
