Balluff

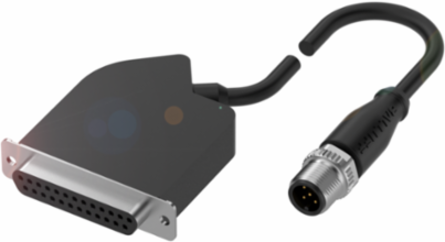

Balluff BNI IOL-752-V13-K007 IO-Link Valve Interface, 0.6 m Cable, IP40, 22 Outputs, M12x1 Connector

IO-Link Valve Interface, 0.6 m Cable, IP40, 22 Outputs, M12x1 Connector
  • MPN: BNI IOL-752-V13-K007
  • PPN: BAL-BNI006F

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$437.41/ EA

Specifications

Specifications

Country of Origin
Germany
Application
Numatics
Operating voltage Ub
18...30.2 VDC
Cable length L
0.6 m
Current sum UA, actuator
4 A
Housing material
PA
Ambient temperature
-5...55 °C
Data transfer rate
COM2 (38.4 kBaud)
Process data out
4 bytes
VersionPower Aux valve terminal connector
InterfaceIO-Link 1.1
Connection (COM 1)M12x1-Male, 5-pin, A-coded
Outputs, number22
Function5-pin connection; Power Aux on Pin 2; also 0V on Pin 5
Dimension53 x 61 x 12.5 mm
IP ratingIP40, plugged in
Process data cycle min.3.5 ms

Downloads
