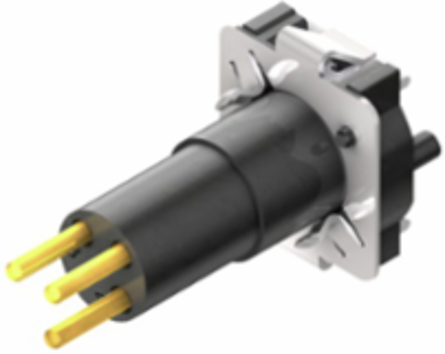

Weidmuller 2423970000 SAID-M8S-4S-THR
- MPN: 2423970000
- PPN: WDM-2423970000
CAD
$6.06
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

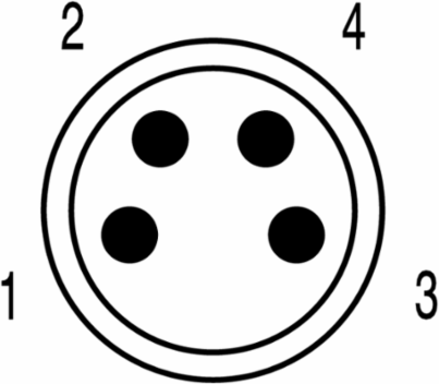

Built-in plugs, M8, Pin, M 8, Number of poles: 4
Documentation & Downloads
Specifications
Approvals
- ROHS
- Conform
Dimensions And Weights
- Net weight
- 3.12 g
Technical Data Of Pcb Plug-In Connector
- Coding
- M8 = none
- Number of poles
- 4
- Rated voltage
- 30 V
- Rated current
- 4 A (3-, 4- and 5-pole) / 1.5 A (8-pole)
- Protection degree
- IP67
- Housing main material
- LCP
- Tightening torque
- M8: 0.5 Nm
- Pollution severity
- 3 (2 within the sealed area)
- Contact material
- CuZn
- Material of the flange-mounted housing
- Nickel-plated CuZn
HousingsM8 pin
Shield connectionNo
Rated voltage (text)60 V (3-pole) / 30 V (4-,5- and 8-pole)
Temperature range-25…95 °C
Contact surfaceAu (Gold)
Connection threadM8
Insulation strength100 MΩ
Plugging cycles≥ 100
Lock nut materialNickel-plated CuZn
Material Data
- Contact material
- CuZn
Contact surfaceAu (Gold)
Classifications
- ETIM 6.0
- EC000438
- eClass 9.1
- 27-44-02-05
ETIM 7.0EC000438
eClass 10.027-44-02-23
System Parameters
- Insulation strength
- 100 MΩ
- Pin series quantity
- 1
- Protection degree
- IP67
Number of poles4
Plugging cycles≥ 100
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
