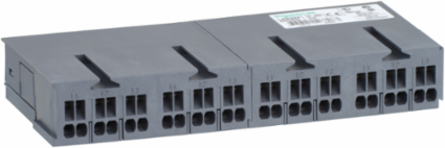

Schneider Electric LAD324 Power splitter box,TeSys Deca Fram 2,63A,for 4 starters composed by GV2ME**3/LS1D323 and LC1D**3 (spring terminal)
- MPN: LAD324
- PPN: SCH-LAD324
CAD
$34.46
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
TeSys Deca power splitter block, for groups of motor starters made with motor circuit breakers GV2 or fuse carriers LS1D32. It permits the quick wiring of the upstream power circuit for 4 starters positionned side by side. To be used for GV2 and LS1D32 models with spring terminal connections. Upstream connection can be completed with an upstream terminal block LAD3B1 (to be ordered separately) for cables connection until 16mm².
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, France
Important Information Attributes
- Persona Type Ids
- EU, LC, OM, OM8, PB
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Local Data Status
- Publishable
- Return Indicator
- N
- Stock Policy
- 2
- Traceability
- No
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status Id
- NOT_CONTAINING_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 1904
- China Rohs In Scope
- No
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 3
- Function Option
- Standard
- Compatibility Code
- LAD
- Energy Efficiency Optimized
- False
- Number Of Poles
- 3P
- Product Or Component Type
- power splitter box
- Returnability
- No
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 8536904000
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
Market SegmentationCommercial, Industrial
Local Publishable Date2026-07-14
Stocking FlagY
ServiceabilityNo
Field Service DivisionPPIBS
Weee Product Category5
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticYes
Tier Id3
Function Option IdSTANDARD
Product Kit IdentifierN
Device Short NameLAD
Number Of Outgoers4
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Range Of ProductTeSys fuse-disconnector
Sustainable PackagingYes
[Ie] Rated Operational Current63 A
Package Weight(Lbs)301.000 g
Warranty (In Months)18
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
- Reach Free Shvc
- Yes
- Toxic Heavy Metal Free
- Yes
- Eu Rohs Directive
- Compliant
- Packaging Without Single Use Plastic
- Yes
- Reach Free Of Svhc
- Yes
Take BackNo
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Packaging Made With Recycled CardboardYes
Product CompatibilityLAD32.
Reach RegulationFree of Substances of Very High Concern above the threshold
General Attributes
- Product Or Component Type
- power splitter box
Range Of ProductTeSys fuse-disconnector
ETIM
- ETIM 8
- EC002498
ETIM 9EC002498
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
