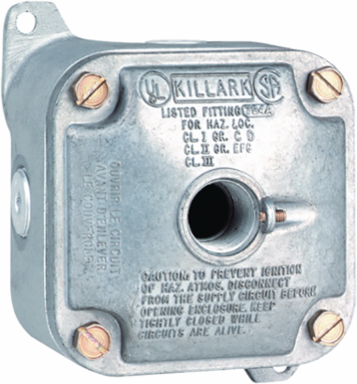

Killark JALX-31 Aluminum Outlet Body with Hub Cover 1 Inch & 1/2 Inch, Volume 26.5 Cubic Inches
Killark JALX-31 Aluminum Outlet Body with Hub Cover 1 Inch & 1/2 Inch, Volume 26.5 Cubic Inches
- MPN: JALX-31
- UPC: 783936365305
- PPN: HBL-JALX-31
- UNSPSC: 39121314
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$402.08/ EA
Description
JAL Series - Aluminum Outlet Body With Hub Cover - X Type - Hub Size 1 Inch (Box Hub) And 1/2 Inch (Cover Hub) - Volume 26.5 Cubic Inches
Features
- Option of blank or hub covers
- Cast mounting lugs
- Large wiring area
- Furnished with internal ground screw
- Hub covers include set screws for locking to lighting fixture stems
- Four drilled and tapped conduit openings in an “x” configuration (three, close-up plugs included to allow five variations from one body)
- Hub cover. Cast mounting lugs. Large wiring area. Furnished with internal ground screw. Hub covers include set screws for locking to lighting fixture stems. Four drilled and tapped conduit openings in an "X" configuration (three close-up plugs included to
Specifications
Certifications
- EU RoHS Indicator
- Contact Manufacturer
Specifications
- Country of Origin
- STL
- Each - Width
- 5.500 in
- Application
- To provide access to conductors for pulling, splicing, and maintenance. May be used as a fixture hanger.
- Special Features
- Hub cover. Cast mounting lugs. Large wiring area. Furnished with internal ground screw. Hub covers include set screws for locking to lighting fixture stems. Four drilled and tapped conduit openings in an "X" configuration (three close-up plugs included to
- Cover Type
- Hub
- ARRA Compliant
- Contact Manufacturer
- Description - Invoice
- 1" ALUM JAL OUTLET BODY W/ HUB COVER
- Harmonization Code
- 7616995190
- Lead Time
- 30 wk
- Order Multiple
- 1 EA
- Sub Class Code
- D30D237
- Hub Pattern
- X
- Series
- JL/JAL Series
- Carton - SCC-14 Next Lower Level Sub Pack
- 00783936365305
Width5.500 in
Hub Size1"
ColorGray
TypeOutlet Body With Cover
Finish TypeNatural
Class CodeD30
Freight Class Code06316009
Image Actual Or RepresentativeR
MSDS FlagNo
Returnable IndicatorYes
Gross Weight with Packaging3.4
MaterialAluminum, Copper Free (less than 4/10 of 1%)
Base Unit of MeasureEA
Master Pack DescriptionEach
