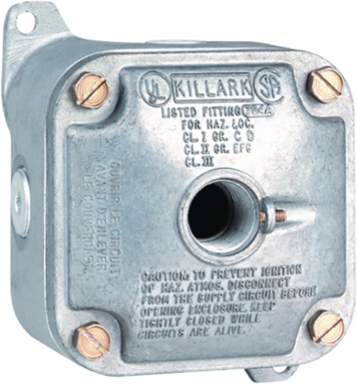

Killark JALX-32 Aluminum Outlet Body with Hub Cover 1 Inch Hub, Volume 26.5 Cu In
- MPN: JALX-32
- UPC: 783936365329
- PPN: HBL-JALX-32
- UNSPSC: 39121314
CAD
$446.03
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
JAL Series - Aluminum Outlet Body With Hub Cover - X Type - Hub Size 1 Inch (Box Hub) And 3/4 Inch (Cover Hub) - Volume 26.5 Cubic Inches
Features
- Option of blank or hub covers
- Cast mounting lugs
- Large wiring area
- Furnished with internal ground screw
- Hub covers include set screws for locking to lighting fixture stems
- Four drilled and tapped conduit openings in an “x” configuration (three, close-up plugs included to allow five variations from one body)
- Hub cover. Cast mounting lugs. Large wiring area. Furnished with internal ground screw. Hub covers include set screws for locking to lighting fixture stems. Four drilled and tapped conduit openings in an "X" configuration (three close-up plugs included to
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
- Hub Size
- 1"
- Color
- Gray
- Type
- Outlet Body With Cover
- Finish Type
- Natural
- Class Code
- D30
- Freight Class Code
- 06316009
- Image Actual Or Representative
- R
- MSDS Flag
- No
- Returnable Indicator
- Yes
- Gross Weight with Packaging
- 3.4
- Material
- Aluminum, Copper Free (less than 4/10 of 1%)
- Base Unit of Measure
- EA
- Carton - SCC-14 Next Lower Level Sub Pack
- 00783936365329
- NAICS Code
- 3359323110
Width5.630 in
ApplicationTo provide access to conductors for pulling, splicing, and maintenance. May be used as a fixture hanger.
Special FeaturesHub cover. Cast mounting lugs. Large wiring area. Furnished with internal ground screw. Hub covers include set screws for locking to lighting fixture stems. Four drilled and tapped conduit openings in an "X" configuration (three close-up plugs included to
Cover TypeHub
ARRA CompliantContact Manufacturer
Description - Invoice1" ALUM JAL OUTLET BODY W/ BLANK COVER
Harmonization Code7616995190
Lead Time30 wk
Order Multiple1 EA
Sub Class CodeD30D237
Hub PatternX
SeriesJL/JAL Series
BOX SIZE(in)
Master Pack DescriptionEach
Certifications
- EU RoHS Indicator
- Contact Manufacturer
