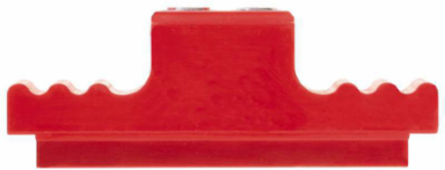

Weidmuller 1809120000 ST 4000/S M8 F
- MPN: 1809120000
- PPN: WDM-1809120000
CAD
$118.19
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Bolt-type screw terminals, Feed-through terminal, Rated cross-section: 120 mm², Screw connection, Direct mounting
Documentation & Downloads
Specifications
Stud Connection
| Cable lug to DIN 46234 | 6...120 mm² |
|---|---|
| Clamping range, bolted connection , max. | 120 mm² |
| Impulse voltage with epoxy resin partition plate | 30 kV |
| Tightening torque, max. | 18 Nm |
| Voltage with epoxy resin partition plate | 4,000 V |
| Cable lug to DIN 46235 | 6...120 mm² |
|---|---|
| Clamping range, bolted connection , min. | 6 mm² |
| Stud size for spade connection | M 8 |
| Tightening torque, min. | 16 Nm |
Approvals
| Approvals | EAC |
|---|
| ROHS | Conform |
|---|
Dimensions And Weights
| Width | 40 mm |
|---|---|
| Height | 150 mm |
| Net weight | 460 g |
| Width (inches) | 1.575 inch |
|---|---|
| Height (inches) | 5.905 inch |
Classifications
| ETIM 6.0 | EC000897 |
|---|---|
| eClass 9.0 | 27-14-11-20 |
| eClass 10.0 | 27-14-11-20 |
| ETIM 7.0 | EC000897 |
|---|---|
| eClass 9.1 | 27-14-11-20 |
| UNSPSC | 30-21-18-01 |
Temperatures
| Storage temperature, max. | 40 °C |
|---|---|
| Storage temperature | 10 °C...40 °C |
| Continuous operating temp., max. | 130 °C |
| Storage temperature, min. | 10 °C |
|---|---|
| Continuous operating temp., min. | -50 °C |
Rating Data
| Rated cross-section | 120 mm² |
|---|---|
| Voltage with epoxy resin partition plate | 4,000 V |
| Current at maximum wires | 315 A |
| Power loss in accordance with IEC 60947-7-x | 8.61 W |
| Impulse voltage with epoxy resin partition plate | 30 kV |
| Rated voltage | 4,000 V |
|---|---|
| Rated current | 315 A |
| Volume resistance according to IEC 60947-7-x | 0.12 mΩ |
| Rated impulse withstand voltage | 30 kV |
| Pollution severity | 3 |
Conductors For Clamping (Rated Connection)
| Cable lug to DIN 46234 | 6...120 mm² |
|---|---|
| Clamping range, bolted connection , max. | 120 mm² |
| Connection direction | on side |
| Stud size for spade connection | M 8 |
| Tightening torque, min. | 16 Nm |
| Wire connection cross section, finely stranded, max. | 120 mm² |
| Cable lug to DIN 46235 | 6...120 mm² |
|---|---|
| Clamping range, bolted connection , min. | 6 mm² |
| Number of connections | 2 |
| Tightening torque, max. | 18 Nm |
| Type of connection | Screw connection |
| Wire connection cross-section, finely stranded, min. | 6 mm² |
