Jonard Tools WD-30-R Jonard Tools WD-30-R Red Wire And Dispenser
- MPN: WD-30-R
- UPC: 811490012509
- PPN: JTL-WD-30-R
CAD
$41.65
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description

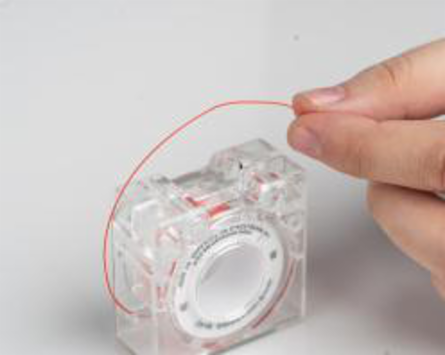

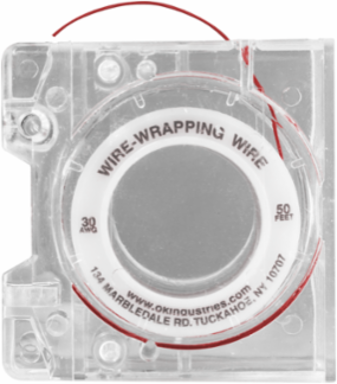

The Kynar® Wire Dispensers are used with insulated Kynar® wire for wire wrapping applications. This wire dispenser comes with a 50 ft (15.2 m) roll of 30 AWG (0.25 mm) Kynar® wire wrapping wire. The wire dispenser features the following:
Features

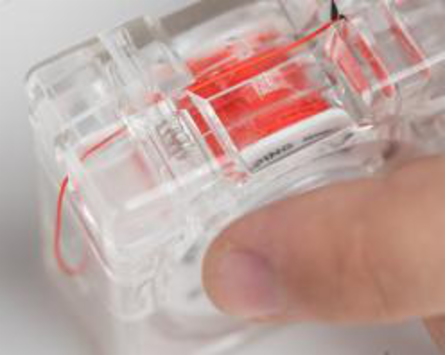

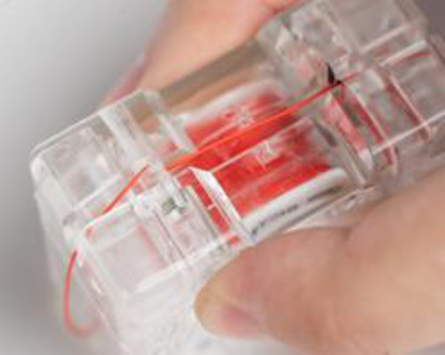

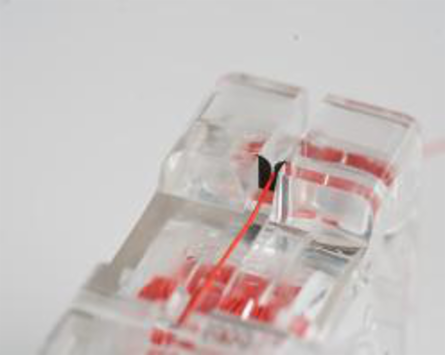

- Built-in plunger to cut the wire to any desired length
- Built-in wire stripper that strips 1" (25.4 mm) of insulation
- Refillable so you can load more wire when needed
- RoHS compliant and meets or exceeds UL 1423 standards
- Insulation color for the included wire is red
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | United States |
|---|---|
| Length | 1.4 Inch |
| Insulation Color | Red |
| Height | 4.5 Inch |
| Weight | 0.167 Lbs. |
| Conductor Material | Silver Plated Copper |
| Product Material | Silver Plated Copper |
| Insulation Type | Kynar® |
|---|---|
| Width | 5.25 Inch |
| Wire Gauge | 30 AWG (0.25 mm) |
| Strip Length | 1" (25.4 mm) |
| Wire Length | 50 ft (15.2 m) |
| Standards | UL 1423 |
| Product Main Color | Red |
