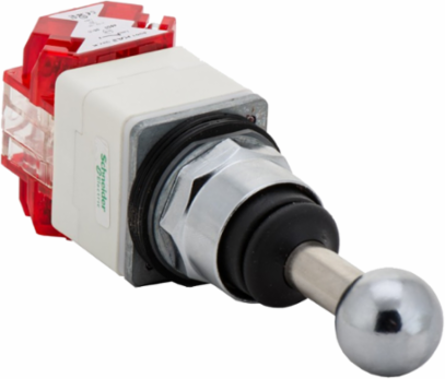

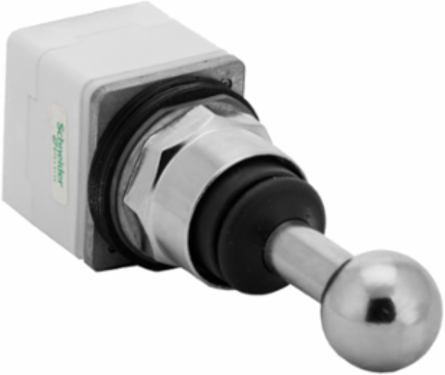

Schneider Electric 9001K33 Joystick controller head, Harmony 9001K, metal, 30mm, 2 directions, spring return to center
Schneider Electric 9001K33 Joystick controller head, Harmony 9001K, metal, 30mm, 2 directions, spring return to center
- MPN: 9001K33
- UPC: 785901077121
- PPN: SCH-9001K33
- UNSPSC: 39122227
Spec sheet
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$327.15/ EA
Description
Joystick controller head, Harmony 9001K, metal, 30mm, 2 directions, spring return to center
Specifications
Physical Attributes
- Size
- 30 mm
Conformance Attributes
- Product Certifications
- NEMA, UL 508
StandardsJIS C8201-5-1, IEC 60947-5-4, IEC 60947-1, JIS C 852, UL 508, CSA C22.2 No 14, IEC 60947-5-1, JIS C8201-1
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Customizable
- 1, no
- Ie Rated Operational Current5
- 3 A 240 V, AC-15, A600-Q600 NEMA, 0.55 A 125 V, DC-13, A600-Q600 NEMA
- Local Publishable Date
- 2026-01-12
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI2503027EN
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- ROHS EUR In Scope
- No
- ROHS EUR Full Compliance Status
- Pro-active compliance (Product out of EU RoHS legal scope)
- China ROHS In Scope
- Yes
- With Recycled Cardboard
- No
- Product Contributes To Saved And Avoided Emissions
- No
- Function Option Id
- STANDARD
- Bezel Material
- metal
- Contacts Usage
- standard
- Mounting Diameter
- 30 mm
- Operator Profile
- 80 mm long operating shaft
- Package Weight Lbs
- 240.404 g
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Protective Treatment
- TC
- Return
- to centre
- Shape Of Screw Head
- cross slotted
- Shock Resistance
- 50 gn IEC 60068-2-27
- Sustainable Packaging
- No
- Type Of Operator
- spring return
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Ui Rated Insulation Voltage2
- 250 V 3)IEC 60947-1
- Connections Terminals
- screw clamp terminals, 1 x 0.22...2 x 1.5 mm² IEC 60947-1
- Stocking Flag
- Y
- Pep Code
- ENVPEP2503027EN
- Global Commercial Status
- Commercialised
- Ith Conventional Free Air Thermal Current5
- 10 A
- Uimp Rated Impulse Withstand Voltage5
- 2.5 kV IEC 60947-1
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Ie Rated Operational Current23 A 240 V, AC-15, A600-Q600 NEMA, 0.55 A 125 V, DC-13, A600-Q600 NEMA
Local Data StatusPublishable
Legacy WEEE ScopeIn
EOLI Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
ROHS EUR StatusCompliant with Exemptions
ROHS EUR Full Compliance Status IdPRO_ACTIVE_COMPLIANCE
Green Premium Status For ReportingGreen Premium product
Without Single Use PlasticNo
Return IndicatorN
Function OptionStandard
Contacts Type And Compositionwithout contact block
Device Short Name9001K
Operating Positionany position
Overvoltage Categoryclass II conforming to IEC 61140
Positive Openingwith IEC 60947-5-2
Product Or Component Typehead for joystick controller
Range Of ProductHarmony 9001K
ReturnabilityNo
Shape Of Signaling Unit Headoctagonal
Short Circuit Protection10 A cartridge fuse IEC 60947-5-1
Tightening Torque0.8-0.8 N.m IEC 60947-1
Vibration Resistance7 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
Ith Conventional Free Air Thermal Current210 A
Uimp Rated Impulse Withstand Voltage22.5 kV IEC 60947-1
Medium DescJoystick controller head, Harmony 9001K, metal, 30mm, 2 directions, spring return to center
Product Kit IdentifierN
Operator Direction Information2 directions
Connections Terminals3screw clamp terminals, 1 x 0.22...2 x 1.5 mm² IEC 60947-1
Ui Rated Insulation Voltage5250 V 3)IEC 60947-1
Environment Attributes Main
- Take Back
- No, Nej
- IP Degree Of Protection
- IP66 IEC 60529, IP65/IP66
- ROHS Exemption Information
- Yes
- China ROHS Regulation
- X
- Ambient Air Temperature For Operation
- -25-70 °C
- Circularity Profile
- ENVEOLI2503027EN
- Packaging Made With Recycled Cardboard
- No
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
EU ROHS DirectiveCompliant By Exemption , Pro-active compliance (Product out of EU RoHS legal scope)
Nema Degree Of ProtectionNEMA 1, NEMA 12, NEMA 13, NEMA 2, NEMA 3, NEMA 3R, NEMA 4
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Ambient Air Temperature For Storage-40-70 °C
Environmental DisclosureENVPEP2503027EN
Packaging Without Single Use PlasticNo
Pep CodeENVPEP2503027EN
General Attributes
- Product Or Component Type
- head for joystick controller
Range Of ProductHarmony 9001K
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Overview Attributes
- Device Presentation
- basic element
