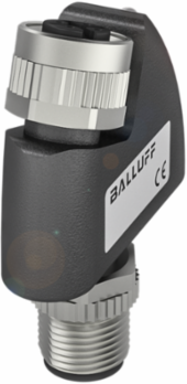

Balluff BNI IOL-716-000-K023 Signal converter BNI IOL-716-000-K023
- MPN: BNI IOL-716-000-K023
- PPN: BAL-BNI004T
CAD
$233.64
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
With the signal converters, various additional functions can be set on the sensors. Changing output signals or numerical and time functions and using it as switching amplifier are possible without additional installation. Simply plug it in between the standardized M12 connections of the sensor and connection cable and adjust via a control line.
Documentation & Downloads
Specifications
Key Specifications
- Version
- Analog converter
- Operating voltage Ub
- 18-30.2 VDC
- Configurable inputs/outputs
- no
- Connection
- M12x1-Male, 4-pin, A-coded
- Housing material
- PA
- Ambient temperature
- -5-70 °C
- Approval/Conformity
- CE, WEEE
- Process data cycle min.
- 12 ms
InterfaceIO-Link 1.0
Analog inputsAnalog, Temperature (Pt100)
Resolution≤ 14 Bit
Connection for sensorM12x1-Female, 4-pin, A-coded
Dimension14.2 x 50.4 x 40 mm
IP ratingIP67 when threaded in
Transfer rateCOM2 (38.4 kBaud)
Process data IN2 bytes
