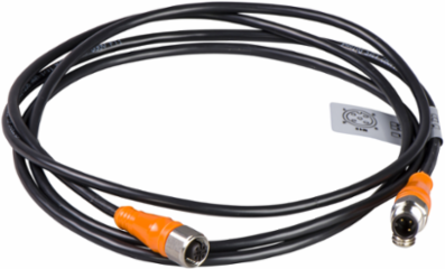

Telemecanique Sensors XZCRA151164D2 Jumper cable XZ, male straight M12 5 pin, female straight M12 5 pin, PVC 2 m
- MPN: XZCRA151164D2
- PPN: TES-XZCRA151164D2
CAD
$71.42
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Jumper cable XZ, male straight M12 5 pin, female straight M12 5 pin, PVC 2 m
Documentation & Downloads
Specifications
Key Specifications
| Accessory / Separate Part Category | cabling accessory |
|---|
| Accessory / Separate Part Type | jumper cable |
|---|
Complementary
| Collar Material | metal |
|---|---|
| Cable Outer Diameter | 5.7 mm |
| Maximum Resistance Across Terminals | 5000 mOhm |
| Cable Length | 2 m |
| Cable Composition | 5 x 0.34 mm² |
| Net Weight | 0.12 kg |
| Jumper Cable End 2 | M12 female 5 pins straight screw-on and clip-on |
|---|---|
| [Ue] Rated Operational Voltage | 250 V AC || 300 V DC |
| Insulation Resistance | >= 1000 MOhm |
| [In] Rated Current | 4 A |
| Jumper Cable End 1 | M12 male 5 pins straight screw-on and clip-on |
Environment
| Ambient Air Temperature For Operation | -25-85 °C static |
|---|
| Ip Degree Of Protection | IP69K |
|---|
Contractual warranty
| Warranty | 18 months |
|---|
Offer Sustainability
| Rohs Exemption Information | Yes |
|---|---|
| Toxic Heavy Metal Free | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Mercury Free | Yes |
|---|---|
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
