Documentation & Downloads
Telemecanique Sensors XZCRA151141C5 Jumper cable XZ, male straight M12 4 pin, female straight M12 4 pin, PVC 5 m
- MPN: XZCRA151141C5
- PPN: TES-XZCRA151141C5
- UNSPSC: 39121528
CAD
$61.63
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description

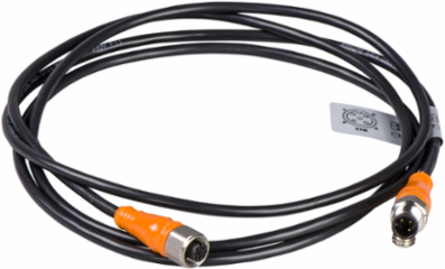

Jumper cable XZ, male straight M12 4 pin, female straight M12 4 pin, PVC 5 m
Documentation & Downloads
Specifications
Key Specifications
- Accessory / Separate Part Category
- cabling accessory
Accessory / Separate Part Typejumper cable
Complementary
- Collar Material
- metal
- Cable Outer Diameter
- 5.3 mm
- Maximum Resistance Across Terminals
- 5000 mOhm
- Cable Length
- 5 m
- Cable Composition
- 4 x 0.34 mm²
- Net Weight
- 0.22 kg
Jumper Cable End 2M12 female 4 pins straight screw-on and clip-on
[Ue] Rated Operational Voltage250 V AC || 300 V DC
Insulation Resistance>= 1000 MOhm
[In] Rated Current4 A
Jumper Cable End 1M12 male 4 pins straight screw-on and clip-on
Environment
- Ambient Air Temperature For Operation
- -25-85 °C static
Ip Degree Of ProtectionIP69K
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Toxic Heavy Metal Free
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
Mercury FreeYes
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Reach Free Of SvhcYes
