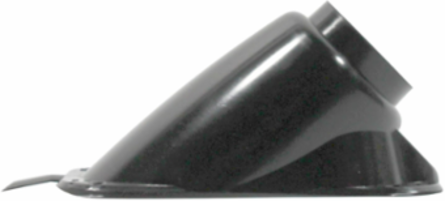

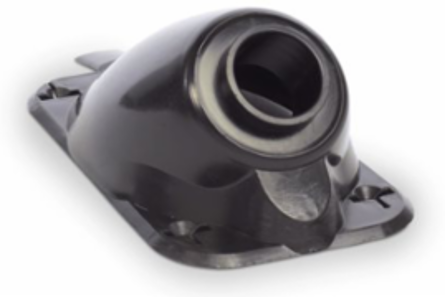

IPEX 089236 KWIKON Angled Stubby Raceway 1-1/4 Inch PE with 45 Degree Design
- MPN: 089236
- UPC: 622454020405
- PPN: IPX-089236
CAD
$4.04
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
The KWIKON Angled Stubby eliminates the need for drilling holes in the plywood forms to create stub downs. With our unique angled design, the ENT raceway maintains a low profile in the concrete pour allowing all sizes of Cor-line ENT to be used in most slabs. The 45 degree angled design allows Kwikon ENT to maintain a low profile in concrete slab and creates a smooth bending radius for easy pull-through of circuit wiring.
Features
- Pullout tab allows for ease of stubby removal after the concrete pour
- T' slot nail hole permits the head of the nail to pull through when the forms are removed
- Can create a 'stub-down' without drilling a hole in the wood form
- Enlarged inside throat area facilitates easy installation of PVC female adapters as required
Documentation & Downloads
Specifications
Additional
- Size
- 1 1/4 in
- Connection Type
- NAIL or SCREW
- Compliance
- CSA C22.2 No. 227.1, NEMA TC-13
- Diameter
- 1 1/4 in
- Country of Origin
- Canada
- NAFTA
- Yes
- Locking Tabs
- Six every 60° providing 360° contact
- Bending Radius
- Smooth for easy pull-through of wiring
Pullout Force175 ft-lb
MaterialPE
Fire Resistance RatingUp to 4 hours
Weight0.049 kg
ColorBLACK
Design Angle45°
ApplicationConcrete floor-ceiling assemblies
Compatible TubingCor-line ENT from 1/2 in to 2 1/2 in
