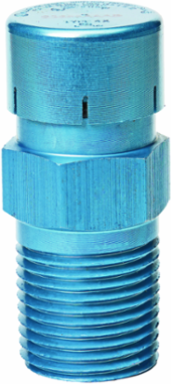

Killark KB1-4X Aluminum Nema 4X Drain & Breather 1/2 Inch NPT - Copper-Free, Blue Anodized Finish
- MPN: KB1-4X
- UPC: 783936121291
- PPN: HBL-KB1-4X
- UNSPSC: 39121321
CAD
$243.25
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
The KB & KDB drain and breather are installed either the bottom top of an enclosure. When installed in the bottom they act as a gravity fed drain to expel moisture from condensation that can build up in electrical enclosures When installed in the top of an enclosure it acts a s a breather allowing air to enter and prevent a vacuum which can cause the drain not to flow properly. They are UL / cCSAus / FM certified for Class I Class I Zone 1 & 2 Class III, Type 4 & 4X. Also, ATEX, IEC Ex, Ex db IP66 with suffix “CEN”. Review each part for hazardous rating suitability and notified body. The KB & KDB are offered in aluminum, 300 series stainless steel and 316 stainless steel. Thread sizes ¼”to 1/2” NPT and Metric sizes M16 & M20.
Features
- Suitable for Explosionproof and Dust-Ignitionproof environments.
- Type 3, 4, 4X rating (NEMA).
- Machined 1/2” NPT thread.
- Copper-free aluminum.
- Light Blue Anodized finish.
- The drain/breather has a 1/2" NPT thread size.
Specifications
Key Specifications
| Country of Origin | United States |
|---|---|
| Hub Size | 1/2" |
| Color | Blue |
| Type | Drain & Breather |
| Nema Rating | 3, 4, 4X |
| Class Code | D30 |
| Freight Class Code | 06316009 |
| Image Actual Or Representative | R |
| MSDS Flag | No |
| Returnable Indicator | Yes |
| Buy America(n) Qualified | Contact Manufacturer |
| Gross Weight with Packaging | 0.3 |
| Material | Aluminum, Copper Free (less than 4/10 of 1%) |
| Base Unit of Measure | EA |
| Carton - Gross Weight per Pack | 1.500 lb. |
| Carton - Pack Description | Carton |
| Carton - Total Units | 5 EA |
| NAICS Code | 3359326103 |
| Hazardous Rating(s) | Class I, Divisions 1 & 2, Groups B, C, D;Class I, Zones 1 & 2, Groups IIB+H2, IIA;Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2 |
|---|---|
| Application | When installed in the top of an enclosure, these fittings act as breathers which allows air flow through the enclosure. Bottom installations permit water from condensation to drain from the enclosure continuously. |
| Special Features | The drain/breather has a 1/2" NPT thread size. |
| Width | 4 in |
| ARRA Compliant | Contact Manufacturer |
| Description - Invoice | 1/2"GRP B,ANODIZED AL DRAIN/BREATHER,4X |
| Harmonization Code | 7616995190 |
| Lead Time | 25 wk |
| Order Multiple | 1 EA |
| Sub Class Code | D30D237 |
| CSA File Number | LR11716 |
| UL File Number | E10514 |
| Series | KB Series |
| BOX SIZE | 5.562x5.562x4.000 (in) |
| Carton - Number of Sub Packs | 5 |
| Carton - SCC-14 Next Lower Level Sub Pack | 00783936121291 |
| Master Pack Description | Each |
