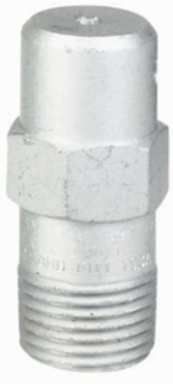

Killark KB1D Aluminum Drain 1/2 Inch NPT Thread Size, UL Certified for Hazardous Locations
- MPN: KB1D
- UPC: 783936381619
- PPN: HBL-KB1D
- UNSPSC: 39121321
CAD
$186.97
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
The KB & KDB drain and breather are installed either the bottom top of an enclosure. When installed in the bottom they act as a gravity fed drain to expel moisture from condensation that can build up in electrical enclosures When installed in the top of an enclosure it acts a s a breather allowing air to enter and prevent a vacuum which can cause the drain not to flow properly. They are UL / cCSAus / FM certified for Class I Class I Zone 1 & 2 Class III, Type 4 & 4X. Also, ATEX, IEC Ex, Ex db IP66 with suffix “CEN”. Review each part for hazardous rating suitability and notified body. The KB & KDB are offered in aluminum, 300 series stainless steel and 316 stainless steel. Thread sizes ¼”to 1/2” NPT and Metric sizes M16 & M20.
Features
- Suitable for Explosionproof and Dust-Ignitionproof environments.
- Copper-free aluminum.
- Light Blue Anodized Finish.
- The drain has a 1/2" NPT thread size.
Specifications
Key Specifications
| Country of Origin | China |
|---|---|
| Hazardous Rating(s) | Class I, Divisions 1 & 2, Groups B, C, D;Class I, Zones 1 & 2, Groups IIB+H2, IIA;Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2 |
| Hub Size | 1/2" |
| Application | When installed in the bottom of an enclosure, these fittings permit water from condensation to drain from the enclosure continuously. |
| Size | 2 in x 1 in x 1 in |
| Type | Drain |
| ARRA Compliant | Contact Manufacturer |
| Description - Invoice | 1/2" GRP. B DRAIN |
| Harmonization Code | 7616995190 |
| Lead Time | 25 wk |
| Order Multiple | 1 EA |
| Sub Class Code | D30D237 |
| CSA File Number | LR11716 |
| UL File Number | E10514 |
| Series | KB Series |
| BOX SIZE | 1.000x2.000x1.000 (in) |
| Carton - Number of Sub Packs | 5 |
| Carton - SCC-14 Next Lower Level Sub Pack | 00783936381619 |
| Master Pack Description | Each |
| Dimensions | 2 in x 1 in x 1 in |
|---|---|
| Height | 1 in |
| Length | 2 in |
| Color | Silver |
| Special Features | The drain has a 1/2" NPT thread size. |
| Width | 1 in |
| Class Code | D30 |
| Freight Class Code | 06316009 |
| Image Actual Or Representative | R |
| MSDS Flag | No |
| Returnable Indicator | Yes |
| Buy America(n) Qualified | Contact Manufacturer |
| Gross Weight with Packaging | 0.5 |
| Material | Aluminum, Copper Free (less than 4/10 of 1%) |
| Base Unit of Measure | EA |
| Carton - Gross Weight per Pack | 2.500 lb. |
| Carton - Pack Description | Carton |
| Carton - Total Units | 5 EA |
| NAICS Code | 3359326103 |
