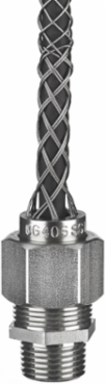

Hubbell Wiring Device-Kellems CG812SST Deluxe Straight Male Cord Grip, Stainless Steel, 0.625-0.750 Inch
Hubbell Wiring Device-Kellems CG812SST Deluxe Straight Male Cord Grip, Stainless Steel, 0.625-0.750 Inch
- MPN: CG812SST
- UPC: 783585334479
- PPN: HBL-CG812SST
- UNSPSC: 39121431
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$710.14/ EA
Description
Kellems Wire Management, Deluxe Cord Grips, Straight Male Stainless, .625-.750", 1" with Mesh
Features
- Stainless Steel Fitting
- Stainless steel mesh is corrosion resistant
- Neoprene bushing is oil and watertight
- Standard Product
Specifications
Specifications
- Country of Origin
- Puerto Rico
- Width
- 2.000 in
- Performance
- Environmental - Flammability - UL 94HB (Strand grip), UL 94V-2(Fitting);Environmental - Hazardous Locations - Suitable for use in hazardous locations per Class I Div. 2, Class II Div. 1 & 2, Class III Div. 1 & 2 N.E.C;Environmental - Operating Temperatures - –30°F to +240°F (–34°C to +115°C);Environmental - Wet Locations - Suitable for use in wet locations when used with a listed sealing ring between box and fitting
- Conductor Range
- 0.625-0.75 in (1.59-1.90 mm)
- Number of Conductors
- Single
- Standard
- UL Listed
- Type
- Straight Male Thread
- General Literature Asset 2 Display Text
- Pulp & Paper Solutions
- Cable Size
- .625"-.750" (1.59-1.90)
- Number Of Conductors
- Single
- Thread Size
- 1" NPT
- Description - Invoice
- STR MALE SS DCG, .625-.750"; 1" W/MESH
- Harmonization Code
- 7326908688
- MSDS Flag
- No
- Material - Mounting Hardware
- Locknut or Tapped Opening
- Series
- Deluxe Cord Grips
- BOX SIZE
- 3.250x18.250x6.250 (in)
- Carton - Number of Sub Packs
- 5
- Carton - SCC-14 Next Lower Level Sub Pack
- 783585334479
- Case - Total Units
- 25 EA
- Each - Pack Description
- Each
Cable Diameter Range0.625 in-0.750 in
Industry Standard(s)UL Listed
ApplicationStraight Male- Form 4
Environmental ConditionsSuitable For Use In Wet Locations When Used With A Listed Sealing Ring Between Box And Fitting.
Special FeaturesStandard Product
Temperature RatingMinimum -30 Deg F to 240 Deg F (-34 Deg C to 115 Deg C)
General Literature Asset 1 Display TextTray Cable Cord Connectors FAQ
General Literature Asset 3 Display TextPULP & PAPER SOLUTIONS
Display Size1" NPT
StyleFor Insulated Cables
Class CodeA52
Freight Class Code06168002
Image Actual Or RepresentativeA
Sub Class CodeA52A480
MaterialStainless Steel Fittings, Stainless Steel Mesh
Base Unit of MeasureEA
Carton - Gross Weight per Pack4.500 lb.
Carton - Pack DescriptionCarton
Carton - Total Units5 EA
Case Weight21.250 lb.
Lowest Level UOMEach
Certifications
- EU RoHS Indicator
- Yes
