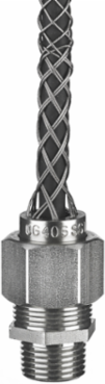

Hubbell Wiring Device-Kellems CG608SST Deluxe Cord Grip, Straight Male, 0.375-0.500 Inch, 3/4 Inch NPT, Stainless Steel
- MPN: CG608SST
- UPC: 783585338132
- PPN: HBL-CG608SST
- UNSPSC: 39121431
CAD
$680.77
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Kellems® Deluxe Cord Grip, Straight Male Stainless, .375-.500", ¾" with Mesh
Features
- Stainless Steel Fitting
- Stainless steel mesh is corrosion resistant
- Neoprene bushing is oil and watertight
- Standard Product
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Puerto Rico
- Width
- 1.410 in
- Performance
- Environmental - Flammability - UL 94HB (Strand grip), UL 94V-2(Fitting);Environmental - Hazardous Locations - Suitable for use in hazardous locations per Class I Div. 2, Class II Div. 1 & 2, Class III Div. 1 & 2 N.E.C;Environmental - Operating Temperatures - –30°F to +240°F (–34°C to +115°C);Environmental - Wet Locations - Suitable for use in wet locations when used with a listed sealing ring between box and fitting
- Conductor Range
- 0.375-0.5 in (.95-1.27 mm)
- Number of Conductors
- Single
- Standard
- UL Listed
- Type
- Straight Male Thread
- General Literature Asset 2 Display Text
- Pulp & Paper Solutions
- Cable Size
- .375"-.500" (.95-1.27)
- Number Of Conductors
- Single
- Thread Size
- 3/4" NPT
- Description - Invoice
- STR MALE SS DCG, .375-.500"; 3/4" W/MESH
- Harmonization Code
- 7326908688
- MSDS Flag
- No
- Material - Mounting Hardware
- Locknut or Tapped Opening
- Series
- Deluxe Cord Grips
- BOX SIZE
- 4.200x9.900x4.700 (in)
- Carton - Number of Sub Packs
- 5
- Carton - SCC-14 Next Lower Level Sub Pack
- 783585338132
- Case - Total Units
- 20 EA
- Each - Pack Description
- Each
- NAICS Code
- 3359323114
Cable Diameter Range0.375 in-0.500 in
Industry Standard(s)UL Listed
ApplicationStraight Male- Form 2
Environmental ConditionsSuitable For Use In Wet Locations When Used With A Listed Sealing Ring Between Box And Fitting.
Special FeaturesStandard Product
Temperature RatingMinimum -30 Deg F to 240 Deg F (-34 Deg C to 115 Deg C)
General Literature Asset 1 Display TextTray Cable Cord Connectors FAQ
General Literature Asset 3 Display TextPULP & PAPER SOLUTIONS
Display Size3/4" NPT
StyleFor Insulated Cables
Class CodeA52
Freight Class Code06168002
Image Actual Or RepresentativeA
Sub Class CodeA52A480
MaterialStainless Steel Fittings, Stainless Steel Mesh
Base Unit of MeasureEA
Carton - Gross Weight per Pack1.750 lb.
Carton - Pack DescriptionCarton
Carton - Total Units5 EA
Case Weight1.800 lb.
Lowest Level UOMEach
Certifications
- EU RoHS Indicator
- Yes
