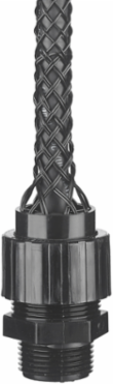

Hubbell Wiring Device-Kellems CG610NM Deluxe Cord Grips, Straight Male Non-Metallic, 0.500-0.625 Inch, 3/4 Inch NPT
- MPN: CG610NM
- UPC: 783585335063
- PPN: HBL-CG610NM
- UNSPSC: 39121431
CAD
$223.06
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Kellems Wire Management, Deluxe Cord Grips, Straight Male Non-Metallic, .500-.625", 3/4" with Mesh
Features
- Nylon Fitting
- Non-metallic mesh is corrosion resistant
- Neoprene bushing is oil and watertight
- Standard Product
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Puerto Rico
- Width
- 4.900 in
- Performance
- Environmental - Flammability - UL 94HB (Strand grip), UL 94V-2(Fitting);Environmental - Hazardous Locations - Suitable for use in hazardous locations per Class I Div. 2, Class II Div. 1 & 2, Class III Div. 1 & 2 N.E.C;Environmental - Operating Temperatures - –30°F to +225°F (–34°C to +107°C);Environmental - Wet Locations - Suitable for use in wet locations when used with a listed sealing ring between box and fitting
- Conductor Range
- 0.5-0.625 in (1.27-1.59 mm)
- Number of Conductors
- Single
- Standard
- UL Listed
- Type
- Straight Male Thread
- General Literature Asset 2 Display Text
- Pulp & Paper Solutions
- Cable Size
- .500"-.625" (1.27-1.59)
- Number Of Conductors
- Single
- Thread Size
- 3/4" NPT
- Description - Invoice
- STR MALE NM DCG, .500-.625"; 3/4" W/MESH
- Harmonization Code
- 3926909989
- MSDS Flag
- No
- Material - Mounting Hardware
- Locknut or Tapped Opening
- Series
- Deluxe Cord Grips Series
- BOX SIZE
- 4.100x10.500x4.600 (in)
- Carton - Number of Sub Packs
- 5
- Carton - SCC-14 Next Lower Level Sub Pack
- 783585335063
- Case Weight
- 4.350 lb.
- Lowest Level UOM
- Each
Cable Diameter Range0.500 in-0.625 in
Industry Standard(s)UL Listed
ApplicationStraight Male- Form 3
Environmental ConditionsSuitable For Use In Wet Locations When Used With A Listed Sealing Ring Between Box And Fitting.
Special FeaturesStandard Product
Temperature RatingMinimum -30 Deg F to 225 Deg F (-34 Deg C to 107 Deg C)
General Literature Asset 1 Display TextTray Cable Cord Connectors FAQ
General Literature Asset 3 Display TextPULP & PAPER SOLUTIONS
Display Size3/4" NPT
StyleFor Insulated Cables
Class CodeA52
Freight Class Code06168002
Image Actual Or RepresentativeA
Sub Class CodeA52A480
MaterialNylon Fittings, Non-Metallic Mesh
Base Unit of MeasureEA
Carton - Gross Weight per Pack0.85 lb.
Carton - Pack DescriptionCarton
Carton - Total Units5 EA
Each - Pack DescriptionEach
NAICS Code3359323114
Certifications
- EU RoHS Indicator
- Yes
