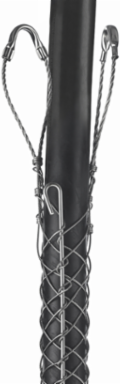

Hubbell 02403006 Stainless Steel Support Grips, Double Eye, 1.25-1.49 Inch Cable Diameter
- MPN: 02403006
- UPC: 783585310275
- PPN: HBL-02403006
- UNSPSC: 39121719
CAD
$253.98
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Support Grips, Double Eye, Single Weave, Split Mesh, Rod Closing, Stainless Steel, 1.25-1.49"
Features
- Double eye
- Strand equalizers position wires for equal loading throughout grip length
- Eye assemblies provide eye reinforcement at support hardware
- Split Mesh- Rod Closing
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
- Cable Diameter Range
- 1.25 in-1.49 in
- Industry Standard(s)
- CSA Certified
- Application
- Double Eye
- Special Features
- Split Mesh- Rod Closing
- Type
- Double Eye
- General Literature Asset 2 Display Text
- PULP & PAPER SOLUTIONS
- Style
- Split Mesh, Rod Closing
- Description - Invoice
- DBL EYE, SUP GRIP, 1.2-1.5"; SS, ROD
- Harmonization Code
- 7326200090
- MSDS Flag
- No
- Material - Mounting Hardware
- Screw Hook or Beam Clamp
- Material
- Stainless Steel
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 4.000 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 10 EA
- Each - Pack Description
- Each
- Pallet - GTIN - Package
- 70783585310274
- Pallet Length
- 48.000 in
- Pallet Width
- 40.000 in
Approx Breaking Strength3,750 lb.
Width4.200 in
PerformanceMechanical - Approximate Breaking Strength - 3,750 (16,681);Mechanical - Working Load - 375 (1668.1) Lbs. (N)
Cable Size1.25"-1.49" (3.17-3.78)
StandardCSA Certified
General Literature Asset 1 Display TextPulp & Paper Solutions
General Literature Asset 3 Display TextFOOD & BEVERAGE SOLUTIONS
Class CodeA52
Freight Class Code06168002
Image Actual Or RepresentativeA
Sub Class CodeA52A480
ConstructionWoven
SeriesStandard Duty Series
BOX SIZE6.100x37.700x12.700 (in)
Carton - Number of Sub Packs10
Carton - SCC-14 Next Lower Level Sub Pack783585310275
Case Weight12.750 lb.
Lowest Level UOMEach
Pallet Height42.700 in
Pallet Weight357.000 lb.
Certifications
- EU RoHS Indicator
- Yes
