Hubbell Wiring Device-Kellems

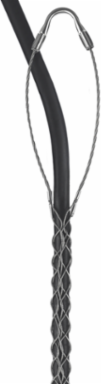

Hubbell Wiring Device-Kellems 02402015 Stainless Steel Split Mesh Support Grip, 0.75-0.99 Inch, Single Eye

Stainless Steel Split Mesh Support Grip, 0.75-0.99 Inch, Single Eye
Stainless Steel Split Mesh Support Grip, 0.75-0.99 Inch, Single Eye
  • MPN: 02402015
  • UPC: 783585309750
  • PPN: HBL-02402015
  • UNSPSC: 39121719

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$189.17/ EA

Description

Support Grips, Single Eye, Single Weave, Split Mesh, Lace Closing, Stainless Steel, 0.75-0.99"

Features

  • Single eye
  • Strand equalizers position wires for equal loading throughout grip length
  • Eye assemblies provide eye reinforcement at support hardware
  • Split Mesh- Lace Closing

Specifications

Specifications

Country of Origin
United States
Cable Diameter Range
0.75 in-0.99 in
Industry Standard(s)
CSA Certified
Application
Single Eye
Special Features
Split Mesh- Lace Closing
Type
Single Eye
General Literature Asset 2 Display Text
PULP & PAPER SOLUTIONS
Style
Split Mesh, Lace Closing
Description - Invoice
SGL EYE, SUP GRIP, .74-.99"; SS, LACE
Harmonization Code
7326200090
MSDS Flag
No
Material - Mounting Hardware
Screw Hook or Beam Clamp
Material
Stainless Steel
Base Unit of Measure
EA
Carton - Gross Weight per Pack
2.000 lb.
Carton - Pack Description
Carton
Carton - Total Units
10 EA
Each - Pack Description
Each
Approx Breaking Strength2,060 lb.
Width2.500 in
PerformanceMechanical - Approximate Breaking Strength - 2,060 (9,163);Mechanical - Working Load - 206 (916.3) Lbs. (N)
Cable Size.75"-.99" (1.90-2.51)
StandardCSA Certified
General Literature Asset 1 Display TextPulp & Paper Solutions
General Literature Asset 3 Display TextFOOD & BEVERAGE SOLUTIONS
Class CodeA52
Freight Class Code06168002
Image Actual Or RepresentativeA
Sub Class CodeA52A480
ConstructionWoven
SeriesStandard Duty Series
BOX SIZE2.500x28.250x12.500 (in)
Carton - Number of Sub Packs10
Carton - SCC-14 Next Lower Level Sub Pack783585309750
Case Weight52.900 lb.
Lowest Level UOMEach

Certifications

EU RoHS Indicator
Yes
