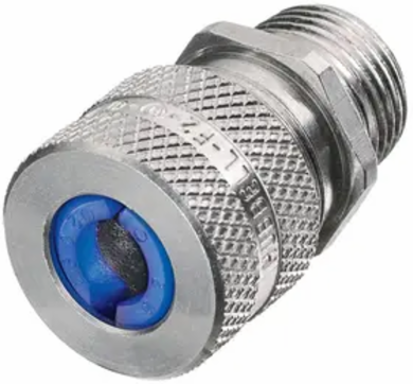

Hubbell Wiring Device-Kellems SHC1023 Aluminum Straight Male Cord Connector, 0.38-0.50 Inch, UL Listed
Hubbell Wiring Device-Kellems SHC1023 Aluminum Straight Male Cord Connector, 0.38-0.50 Inch, UL Listed
- MPN: SHC1023
- UPC: 783585200231
- PPN: HBL-SHC1023
- UNSPSC: 39121431
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To view product inventory
CAD$20.69/ EA
Description
Kellems Wire Management, Cord Connectors, Straight Male, .38-.50", 1/2", Aluminum
Features
- Aluminum cord connector provides durable performance
- Knurled finish makes them easy to handle and maintain UL listing by hand tightening
- Lightweight design
- Standard Product
Specifications
Specifications
- Engineering Drawing 1 Display Text
- SHC1023 AutoCAD Drawing
- Country of Origin
- China
- Hub Size
- 1/2 "
- Performance
- Environmental - Hazardous Locations - Used in hazardous locations per Class I Div. 2, Class II Div. 1 & 2, Class Ill Div. 1 & 2 in accordance with the NEC;Environmental - Operating Temperatures - -30°F to +225°F (-34°C to +107°C)
- Application
- Straight Male- Form 2
- Environmental Conditions
- Suitable For Use In Wet Locations When Used With A Listed Nylon Washer Between Box And Fitting.
- Number of Conductors
- Single
- Standard
- UL Listed
- Type
- Straight Male
- General Literature Asset 2 Display Text
- Wire Management Solutions Brochure
- Nema Rating
- NEMA Type 4, 4X, 12 and 13
- Class Code
- A52
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Sub Class Code
- A52A490
- Color Code
- Blue
- Material
- Aluminum
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 3.95 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 50 EA
- Case Weight
- 15.950 lb.
- Lowest Level UOM
- Each
- Pallet Length
- 48.000 in
- Pallet Width
- 40.000 in
General Literature Asset 3 Display TextWiring Device Solutions for Strategic Manufacturing Facilities
Width1.128 in
Industry Standard(s)UL Listed
Standards - RoHS Compliance StatusCM
Conductor Range0.38- 0.5 in (9.7-12.7 mm)
NEMA RatingNEMA Type 4, 4X, 12 and 13
Special FeaturesStandard Product
Temperature RatingMinimum -30 Deg F to 225 Deg F (-34 Deg C to 107 Deg C)
General Literature Asset 1 Display TextMulti-Hole Cord Grip Connectors
Display Size1/2" NPT
Number Of ConductorsSingle
Description - InvoiceCORD CONN, STR ML, .38-.50", 1/2", ALUM
Harmonization Code8546909900
MSDS FlagNo
Material - Mounting HardwareLocknut or Tapped Opening
Cord Diameter0.38-0.50 in
SeriesStandard Duty Series
BOX SIZE4.700x8.400x5.500 (in)
Carton - Number of Sub Packs50
Carton - SCC-14 Next Lower Level Sub Pack783585200231
Case - Total Units200 EA
Each - Pack DescriptionEach
Pallet Height47.200 in
Pallet Weight1260.000 lb.
Certifications
- EU RoHS Indicator
- Yes
