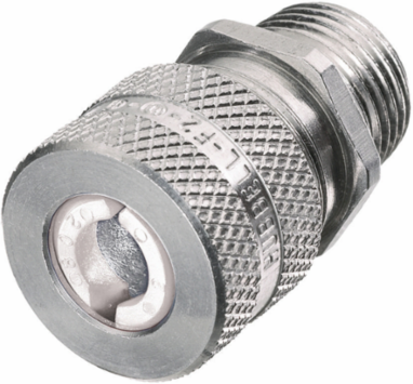

Hubbell Wiring Device-Kellems SHC1022 Kellems Aluminum Cord Connector, Straight Male, 1/2 Inch NPT, 0.25-0.38 Inch
- MPN: SHC1022
- UPC: 783585200224
- PPN: HBL-SHC1022
- UNSPSC: 39121431
CAD
$20.69
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Kellems Wire Management, Cord Connectors, Straight Male, .25-.38", 1/2", Aluminum
Features
- Aluminum cord connector provides durable performance
- Knurled finish makes them easy to handle and maintain UL listing by hand tightening
- Lightweight design
- Standard Product
Documentation & Downloads
Specifications
Key Specifications
- Engineering Drawing 1 Display Text
- SHC1022 AutoCAD Drawing
- Country of Origin
- China
- Hub Size
- 1/2 "
- Performance
- Environmental - Hazardous Locations - Used in hazardous locations per Class I Div. 2, Class II Div. 1 & 2, Class Ill Div. 1 & 2 in accordance with the NEC;Environmental - Operating Temperatures - -30°F to +225°F (-34°C to +107°C)
- Application
- Straight Male- Form 2
- Environmental Conditions
- Suitable For Use In Wet Locations When Used With A Listed Nylon Washer Between Box And Fitting.
- Number of Conductors
- Single
- Standard
- UL Listed
- Type
- Straight Male
- General Literature Asset 2 Display Text
- Wire Management Solutions Brochure
- Nema Rating
- NEMA Type 4, 4X, 12 and 13
- Class Code
- A52
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Replaced Catalog Number
- SHC1022HI
- Material - Mounting Hardware
- Locknut or Tapped Opening
- Cord Diameter
- 0.25-0.38 in
- Series
- Standard Duty Series
- BOX SIZE
- 4.800x8.400x5.500 (in)
- Carton - Number of Sub Packs
- 50
- Carton - SCC-14 Next Lower Level Sub Pack
- 783585200224
- Case - Total Units
- 200 EA
- Each - Pack Description
- Each
- Pallet - GTIN - Package
- 70783585200223
- Pallet Length
- 48.000 in
- Pallet Width
- 40.000 in
General Literature Asset 3 Display TextPulp & Paper Solutions
Width1.120 in
Industry Standard(s)UL Listed
Standards - RoHS Compliance StatusCM
Conductor Range0.25- 0.38 in (6.3- .9.7 mm)
NEMA RatingNEMA Type 4, 4X, 12 and 13
Special FeaturesStandard Product
Temperature RatingMinimum -30 Deg F to 225 Deg F (-34 Deg C to 107 Deg C)
General Literature Asset 1 Display TextMulti-Hole Cord Grip Connectors
Display Size1/2" NPT
Number Of ConductorsSingle
Description - InvoiceCORD CONN, STR ML, .25-.38", 1/2", ALUM
Harmonization Code7616999999
MSDS FlagNo
Sub Class CodeA52A490
Color CodeWhite
MaterialAluminum
Base Unit of MeasureEA
Carton - Gross Weight per Pack4.15 lb.
Carton - Pack DescriptionCarton
Carton - Total Units50 EA
Case Weight6.414 lb.
Lowest Level UOMEach
Pallet Height48.000 in
Pallet Weight1316.000 lb.
NAICS Code3359323114
Certifications
- EU RoHS Indicator
- Yes
