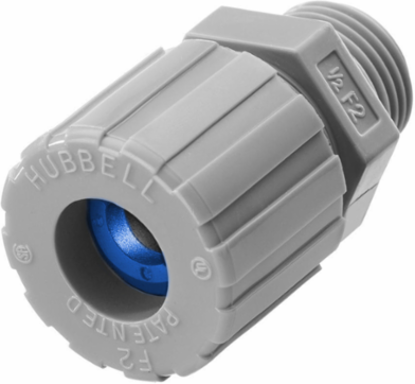

Hubbell Wiring Device-Kellems SHC1023CR Cord Connector, Straight Male, 0.38-0.50 Inch, Nylon, UL Listed
- MPN: SHC1023CR
- UPC: 783585208053
- PPN: HBL-SHC1023CR
- UNSPSC: 39121431
CAD
$22.48
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Kellems Wire Management, Cord Connectors, Straight Male, .38-.50", 1/2", Nylon
Features
- Nylon cord connector resists most common industrial corrosives
- Provides effective pullout protection
- Lightweight design
- Standard Product
Documentation & Downloads
Specifications
Key Specifications
- Engineering Drawing 1 Display Text
- SHC1023CR AutoCAD Drawing
- Country of Origin
- China
- Hub Size
- 1/2 "
- Performance
- Environmental - Flammability - UL 94-V2;Environmental - Hazardous Locations - Used in hazardous locations per Class I Div. 2, Class II Div. 1 & 2, Class Ill Div. 1 & 2 in accordance with the NEC;Environmental - Operating Temperatures - -30°F to +225°F (-34°C to +107°C)
- Application
- Straight Male- Form 2
- Conductor Range
- 0.38- 0.5 in (9.7- 12.7 mm)
- NEMA Rating
- NEMA Type 4, 4X, 12 and 13
- Special Features
- Standard Product
- Temperature Rating
- Minimum -30 Deg F to 225 Deg F (-34 Deg C to 107 Deg C)
- General Literature Asset 1 Display Text
- Multi-Hole Cord Grip Connectors
- Display Size
- 1/2" NPT
- Number Of Conductors
- Single
- Description - Invoice
- CORDCONN, STR ML, .38-.50", 1/2", NYL,GY
- Harmonization Code
- 3926909999
- MSDS Flag
- No
- Material - Mounting Hardware
- Locknut or Tapped Opening
- Cord Diameter
- 0.38-0.50 in
- Series
- Standard Duty Series
- BOX SIZE
- 4.400x6.100x5.600 (in)
- Carton - Number of Sub Packs
- 25
- Carton - SCC-14 Next Lower Level Sub Pack
- 783585208053
- Case - Total Units
- 100 EA
- Each - Pack Description
- Each
- Pallet - GTIN - Package
- 70783585208052
- Pallet Length
- 48.000 in
- Pallet Width
- 40.000 in
General Literature Asset 3 Display TextPulp & Paper Solutions
Width1.870 in
Industry Standard(s)UL Listed
Standards - RoHS Compliance StatusCM
ColorGray
Environmental ConditionsSuitable For Use In Wet Locations When Used With A Listed Nylon Washer Between Box And Fitting.
Number of ConductorsSingle
StandardUL Listed
TypeStraight Male
General Literature Asset 2 Display TextWire Management Solutions Brochure
Nema RatingNEMA Type 4, 4X, 12 and 13
Class CodeA52
Freight Class Code06168002
Image Actual Or RepresentativeA
Sub Class CodeA52A490
Color CodeBlue
MaterialNylon
Base Unit of MeasureEA
Carton - Gross Weight per Pack1.85 lb.
Carton - Pack DescriptionCarton
Carton - Total Units25 EA
Case Weight4.150 lb.
Lowest Level UOMEach
Pallet Height46.900 in
Pallet Weight1008.000 lb.
NAICS Code3359323114
Certifications
- EU RoHS Indicator
- Yes
