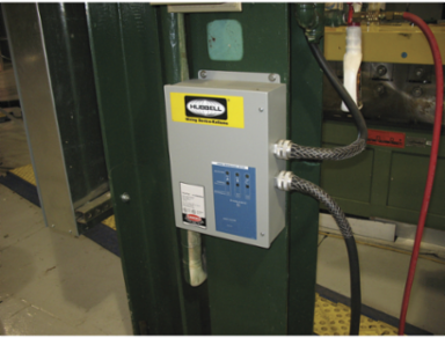

Hubbell Wiring Device-Kellems 074PG29021 Deluxe Straight Male Cord Grip, 0.625-0.750 Inch, PG29
- MPN: 074PG29021
- UPC: 783585327761
- PPN: HBL-074PG29021
- UNSPSC: 39121431
CAD
$250.35
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Kellems Wire Management, Deluxe Cord Grips, Straight Male,.625-.750", PG29 with Mesh
Features
- Aluminum Fiting
- Stainless steel mesh is corrosion resistant
- Neoprene bushing is oil and watertight
- Standard Product
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
- Width
- 2.000 in
- Industry Standard(s)
- UL Listed
- Application
- Straight Male- Form 4
- Environmental Conditions
- Suitable For Use In Wet Locations When Used With A Listed Sealing Ring Between Box And Fitting.
- Special Features
- Standard Product
- Temperature Rating
- Minimum -30 Deg F to 240 Deg F (-34 Deg C to 115 Deg C)
- General Literature Asset 1 Display Text
- Pulp & Paper Solutions
- General Literature Asset 3 Display Text
- FOOD & BEVERAGE SOLUTIONS
- Display Size
- PG29
- Style
- For Insulated Cables
- Description - Invoice
- STR MALE, DCG, .50-.62"; PG29 W/MESH
- Harmonization Code
- 7616995190
- MSDS Flag
- No
- Material - Mounting Hardware
- Locknut or Tapped Opening
- Series
- PG and Metric Threaded
- BOX SIZE
- 4.300x13.300x4.700 (in)
- Carton - Number of Sub Packs
- 5
- Carton - SCC-14 Next Lower Level Sub Pack
- 783585327761
- Case - Total Units
- 20 EA
- Each - Pack Description
- Each
- NAICS Code
- 3359323114
Cable Diameter Range0.625 in-0.750 in
Hub SizePG29
PerformanceEnvironmental - Flammability - UL 94HB (Strand grip), UL 94V-2 (Fitting);Environmental - Hazardous Locations - Suitable for use in hazardous locations per Class I Div. 2, Class II Div. 1 & 2, Class III Div. 1 & 2 N.E.C;Environmental - Operating Temperatures - –30°F to +240°F (–34°C to +115°C);Environmental - Wet Locations - Suitable for use in wet locations when used with a listed sealing ring between box and fitting
Conductor Range0.625-0.75 in (1.59-1.90 mm)
Number of ConductorsSingle
StandardUL Listed
TypeStraight PG Male Thread
General Literature Asset 2 Display TextPULP & PAPER SOLUTIONS
Cable Size.625"-.750" (1.59-1.90)
Number Of ConductorsSingle
Class CodeA52
Freight Class Code06168002
Image Actual Or RepresentativeA
Sub Class CodeA52A480
MaterialAluminum Fittings, Stainless Steel Mesh
Base Unit of MeasureEA
Carton - Gross Weight per Pack1.6 lb.
Carton - Pack DescriptionCarton
Carton - Total Units5 EA
Case Weight5.000 lb.
Lowest Level UOMEach
Certifications
- EU RoHS Indicator
- Yes
