Hubbell Wiring Device-Kellems

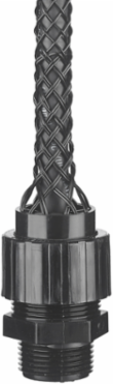

Hubbell Wiring Device-Kellems CG306NM Deluxe Non-Metallic Cord Grip, 3/8" NPT, Cable Size .312-.375"

Deluxe Non-Metallic Cord Grip, 3/8" NPT, Cable Size .312-.375"
Deluxe Non-Metallic Cord Grip, 3/8" NPT, Cable Size .312-.375"
  • MPN: CG306NM
  • UPC: 783585498843
  • PPN: HBL-CG306NM
  • UNSPSC: 39121431

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$160.45/ EA

Description

Kellems Wire Management, Deluxe Cord Grips, Straight Male Non- Metallic, .312-.375", 3/8" with Mesh

Features

  • Nylon Fitting
  • Non-metallic mesh is corrosion resistant
  • Neoprene bushing is oil and watertight
  • Standard Product

Specifications

Specifications

Country of Origin
United States
Width
3.200 in
Performance
Environmental - Flammability - UL 94HB (Strand grip), UL 94V-2(Fitting);Environmental - Hazardous Locations - Suitable for use in hazardous locations per Class I Div. 2, Class II Div. 1 & 2, Class III Div. 1 & 2 N.E.C;Environmental - Operating Temperatures - –30°F to +225°F (–34°C to +107°C);Environmental - Wet Locations - Suitable for use in wet locations when used with a listed sealing ring between box and fitting
Conductor Range
0.312-0.375 in (.79-.95 mm)
Number of Conductors
Single
Standard
UL Listed
Type
Straight Male Thread
General Literature Asset 2 Display Text
PULP & PAPER SOLUTIONS
Cable Size
.312"-.375" (.79-.95)
Number Of Conductors
Single
Thread Size
3/8" NPT
Description - Invoice
STR MALE NM DCG, .312-.375"; 3/8" W/MESH
Harmonization Code
3926909989
MSDS Flag
No
Material - Mounting Hardware
Locknut or Tapped Opening
Series
Deluxe Cord Grips
BOX SIZE
3.700x7.700x3.700 (in)
Carton - Number of Sub Packs
5
Carton - SCC-14 Next Lower Level Sub Pack
783585498843
Each - Pack Description
Each
Cable Diameter Range0.312 in-0.375 in
Industry Standard(s)UL Listed
ApplicationStraight Male- Form 1
Environmental ConditionsSuitable For Use In Wet Locations When Used With A Listed Sealing Ring Between Box And Fitting.
Special FeaturesStandard Product
Temperature RatingMinimum -30 Deg F to 225 Deg F (-34 Deg C to 107 Deg C)
General Literature Asset 1 Display TextPulp & Paper Solutions
General Literature Asset 3 Display TextFOOD & BEVERAGE SOLUTIONS
Display Size3/8" NPT
StyleFor Insulated Cables
Class CodeA52
Freight Class Code06168002
Image Actual Or RepresentativeA
Sub Class CodeA52A480
MaterialNylon Fittings, Non-Metallic Mesh
Base Unit of MeasureEA
Carton - Gross Weight per Pack0.25 lb.
Carton - Pack DescriptionCarton
Carton - Total Units5 EA
Lowest Level UOMEach

Certifications

EU RoHS Indicator
Yes
