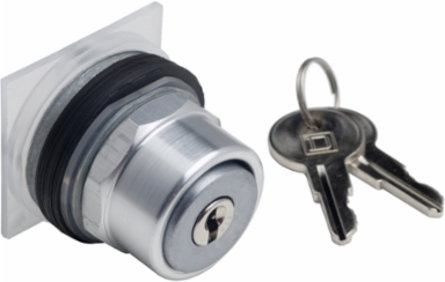

Schneider Electric 9001KR131 Harmony 9001K Metal Key Switch Pushbutton 30mm E10 Stay Put
- MPN: 9001KR131
- UPC: 785901260493
- PPN: SCH-9001KR131
CAD
$159.94
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This metal key switch pushbutton from Schneider Electric's Harmony series combines robust design with reliable functionality for automation and control applications. With a 30mm size and an E10 model specification, it is engineered to ensure secure operation in various environments, providing a key-operated mechanism that stays put when activated. Ideal for panel builders and system integrators, this key switch enhances safety and control, making it a valuable component in any industrial setup. Its durability and simplicity emphasize quality, ensuring consistent performance in demanding conditions.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil
Important Information Attributes
- Operator Profile
- key switch, flush
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 2
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 7
- Without Single Use Plastic
- Yes
- Product Kit Identifier
- N
- Compatibility Code
- 9001K
- Device Short Name
- 9001K
- Mounting Diameter
- 30 mm
- Product Availability
- Stock - Normally stocked in distribution facility
- Range Of Product
- Harmony 9001K
- Shape Of Signaling Unit Head
- round
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 8538908180
Type Of Operatorspring return, stay put
Local Publishable Date2026-01-12
Stocking FlagN
Weee ScopeIn
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI2503027EN
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1930
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Bezel Materialmetal
Contacts Type And Compositionwithout contact block
Key NumberE10
Operator Position Informationextended position
Product Or Component Typehead for key-operated pushbutton
ReturnabilityYes
Sustainable PackagingYes
Pep CodeENVPEP2503027EN
Package Weight(Lbs)176.901 g
Warranty (In Months)18
Environment Attributes Main
- Take Back
- No
- China Rohs Regulation
- X
- Circularity Profile
- ENVEOLI2503027EN
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Without Single Use Plastic
- Yes
- Pep Code
- ENVPEP2503027EN
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Environmental DisclosureENVPEP2503027EN
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
General Attributes
- Product Or Component Type
- head for key-operated pushbutton
Range Of ProductHarmony 9001K
ETIM
- ETIM 8
- EC000221
ETIM 9EC000221
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
