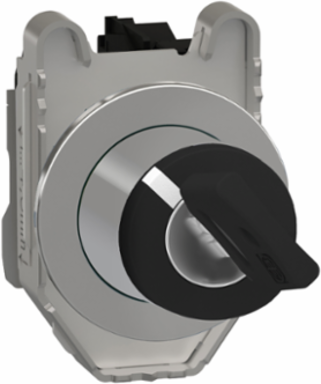

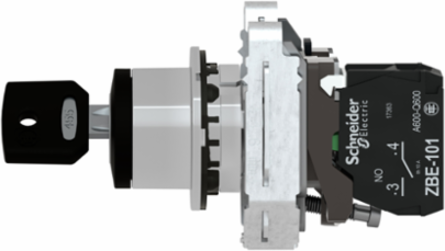

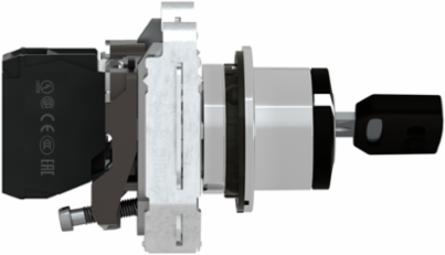

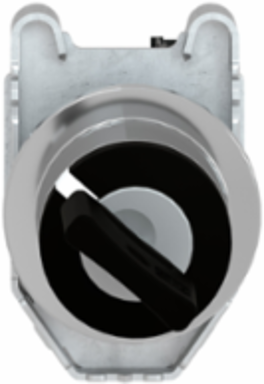

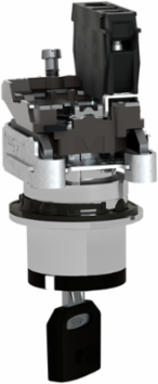

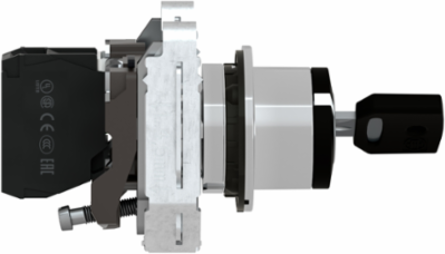

Schneider Electric XB4FG21 Harmony XB4 Key Switch Selector, 30mm, 2 Positions, 1NO, IP66
- MPN: XB4FG21
- PPN: SCH-XB4FG21
CAD
$107.72
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

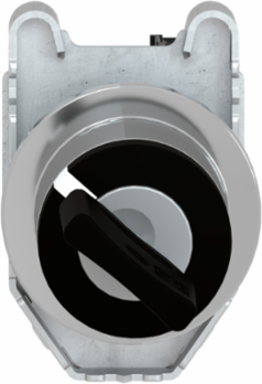

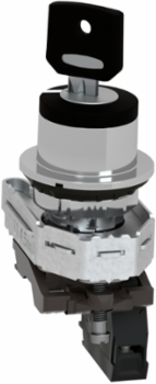

Harmony XB4 Key Switch Selector, 30mm, 2 Positions, 1NO, IP66
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- China, France
Depth100 mm
Important Information Attributes
- Customizable
- no, 1
- Electrical Reliability
- λ < 10exp(-6) 5 V 1 mA in clean environment IEC 60947-5-4, λ < 10exp(-8) 17 V 5 mA in clean environment IEC 60947-5-4
- Shape Of Screw Head
- cross Philips no 1, cross pozidriv No 1slotted flat Ø 4 mm, slotted flat Ø 5.5 mm
- Operator Pos Information
- 2 positions 90°
- [Ie] Rated Operational Current
- 3 A 240 V, AC-15, A600 IEC 60947-5-16 A 120 V, AC-15, A600 IEC 60947-5-10.1 A 600 V, DC-13, Q600 IEC 60947-5-10.27 A 250 V, DC-13, Q600 IEC 60947-5-10.55 A 125 V, DC-13, Q600 IEC 60947-5-1, 1.2 A 600 V, AC-15, A600 IEC 60947-5-1
- Carbon Footprint Of The Distribution Phase [A4]
- 0.0241924096, 0 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0 kg CO2 eq., 0.0232584676
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 0.1 kg CO2 eq., 0.056961
- Local Publishable Date
- 2026-01-12
- Stocking Flag
- N
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI2308006EN
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 5
- Without Single Use Plastic
- Yes
- Product Kit Identifier
- N
- Compatibility Code
- XB4
- Contacts Material
- silver alloy (Ag/Ni)
- Contacts Usage
- standard contacts

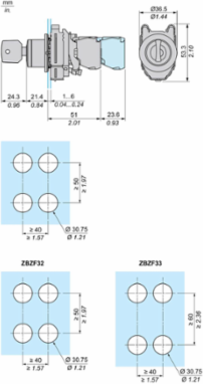

- Fixing Center
- 40 x 50 mm 1...6 mm thick panel)
- Fixing Mode
- by screws
- Head Type
- built-in-flush
- Mounting Diameter
- 30.5 mm
- Operator Profile
- black key switch
- Positive Opening
- without
- Product Or Component Type
- selector switch
- Protective Treatment
- TH
- Resistance To High Pressure Washer
- 7000000 Pa 55 °C 0.1 m
- Sale Per Indivisible Quantity
- 1
- Software Version
- v5.9.4
- Tightening Torque
- 0.8-1.2 N.m IEC 60947-1
- Total Lifecycle Carbon Footprint
- 1 kg CO2 eq.
- Type Of Operator
- stay put
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Type Of Operator 3 Type Of Operator
- stay put
- Database Version
- 2022-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- Key selector switch has 2 positions, operates with a stay-put mechanism with key withdrawal on the left position. It has a metal bezel. This key selector switch provides a versatile interface for controlling your machines. It is easily installed into standard 22mm diameter cut-outs and connected to your control circuits with simple screw-clamp connections.This switch s primary function is to control devices as well as switch between a minimum of two electrical circuits with a power consumption of 0.002 W with use rate of 72% for a period of 10 years and product is adhering to standards EN/IEC 60947-5-1
- Functional-unit Unit
- Unit
- Energy Model - Manufacturing [A1-a3]
- Energy model used: Electricity Mix; Production mix; Low voltage; UE-27
- Height Nominal
- 47 mm
- [Ith] Conventional Free Air Thermal Current
- 10 A IEC 60947-5-1
- [Uimp] Rated Impulse Withstand Voltage
- 6 kV IEC 60947-1
- Connections - Terminals
- screw clamp terminals, = 1 x 0.22 mm² without cable end IEC 60947-1
- Nbr. Of Units In Pkg.
- 1
- Product Repair Index - Dam Document Id
- XB4BS8442-ENVREPAIR-A-EN
- Warranty (In Months)
- 18
- Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]
- 1.3234
- Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]
- 1.3234
Electrical Durability1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 EN 60947-5-1 appendix C1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 EN 60947-5-1 appendix C1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 EN 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 EN 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 EN 60947-5-1 appendix C
Key Withdrawal Positionleft-hand, left-hand
Shock Resistance30 gn 18 ms) half sine wave acceleration IEC 60068-2-2750 gn 11 ms) half sine wave acceleration IEC 60068-2-27, 25 gn 6 ms) 1000 shocks on each axis IEC 60068-2-27
Certificate AgencyUL Listed, CSA, CCC, EAC

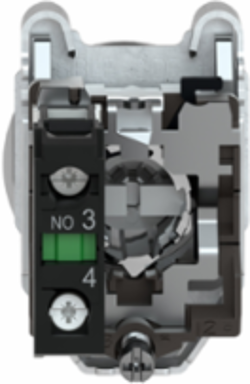

Terminals Description Iso N°1(13-14)NO, (13-14)NO
Carbon Footprint Of The End-of-life Phase [C1 To C4]0.1137011457, 0.1 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase [A1 To A3]1 kg CO2 eq., 1.2245503043
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
Weee Product Category5
Eoli Availability DisplayYes
Product Repair Index Dam DocXB4BS8442-ENVREPAIR-A-EN
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1930
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Bezel Materialchromium plated metal
Contact Operationslow-break
Contacts Type And Composition1 NO
Device Short NameXB4F
Fixing Collar Materialzamak
Gcr BridgeXB4FGCUST01
Mechanical Durability1000000 cycles
Operator Position Information2 positions 90°
Overvoltage Categoryclass I conforming to IEC 60536
Product AvailabilityStock - Normally stocked in distribution facility
Product Repair IndexA
Range Of ProductHarmony XB4
ReturnabilityYes
Shape Of Signaling Unit Headround
Sustainable PackagingYes
Torque Value0.14 N.m NO changing electrical state
Type Of Keylockkey 455
Vibration Resistance5 gn (f= 10-500 Hz) conforming to IEC 60068-2-62 mm peak to peak (f= 2-10 Hz) conforming to IEC 60068-2-6
Contacts Composition1 NO
Pep CodeENVPEP2308006EN
Pep Verification Date2023-08-01
Psr VersionPSR-0005-ed2-2016 03 29
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y10
Recyclability Potential In %88
Width Nominal36.6 mm
[Ui] Rated Insulation Voltage600 V 3)IEC 60947-1
Cap/Operator Or Lens Colourblack
Short-circuit Protection10 A cartridge fuse gG IEC 60947-5-1
Package Weight(Lbs)183.000 g
Take-backNo
Depletion Of Abiotic Resources - Fossil Fuels (Mj) Operational Energy Use [B6]1.3234
Total Use Of Primary Energy During The Life Cycle (Mj) Operational Energy Use [B6]1.5778
Customs Code8536509020
Environment Attributes Main
- Ambient Air Temperature For Operation
- -40-70 °C, -40-70 °C
- Ip Degree Of Protection
- IP66 IEC 60529, IP67 IEC 60529, IP69 IEC 60529IP69K ISO 20653Type 13 UL 50 E, Type 12 UL 50 E, Type 4 UL 50 E, Type 4X UL 50 E
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Circularity Profile
- ENVEOLI2308006EN
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Without Single Use Plastic
- Yes
- Pep Code
- ENVPEP2308006EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
Take BackNo
China Rohs RegulationX
Carbon Footprint1.4426633272
Environmental DisclosureENVPEP2308006EN
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2023-08-01
Psr VersionPSR-0005-ed2-2016 03 29
General Attributes
- Product Or Component Type
- selector switch
Range Of ProductHarmony XB4
ETIM
- ETIM 8
- EC001029
ETIM 9EC001029
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Overview Attributes
- Device Presentation
- complete product
