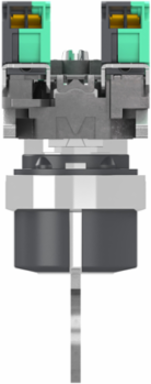

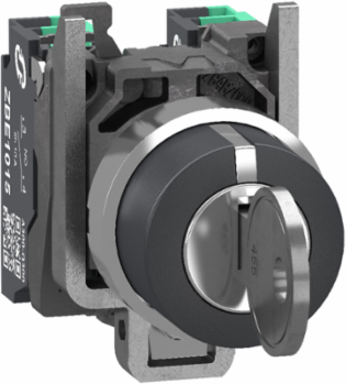

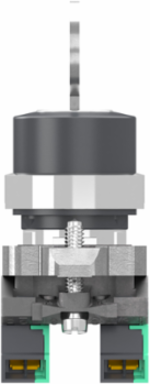

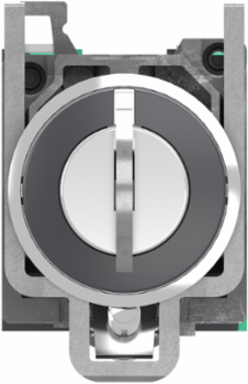

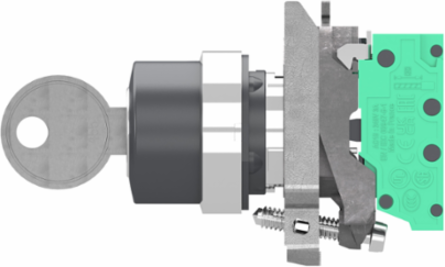

Schneider Electric XB4BG335 Key switch selector, Harmony XB4, metal, black, 22mm, key 455, 3 positions, stay put, key release center, 2 NO, push in

MPN: XB4BG335
PPN: SCH-XB4BG335
UNSPSC: 39122217

$95.68

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

This Harmony XB4 modular black key selector switch (key no.455) has 3 positions and operates with a stay-put mechanism with key withdrawal on the center position. This metal key switch selector provides an ergonomic interface for controlling your machines. It features 2 NO contacts with slow break operation. This key selector switch provides a versatile interface for controlling your machines. It is easily installed into standard 22mm diameter cut-outs and connected to your control circuits with push-in terminal connections. It provides a secure manner for authorized staff to switch between process or machine operating modes. This product is made from metal, it weighs 127g. It is impact-resistant, dust-resistant, water and vibration-resistant thanks to its IP66, IP67, IP69, and IP69K ratings, making it ideal for operation in harsh environments. Harmony delivers an innovative and ergonomic design that improves the reliability of panels, machines, and processes.

Features

Quick and easy assembly and disassembly
Robustness to withstand harsh environments
A wide choice of contact blocks for general purposes or specific applications
Excellent mechanical connection with operator head
A large set of accessories to customize your panels
Tool-free installation enabled by push-in connections, ensuring effortless setup

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	France

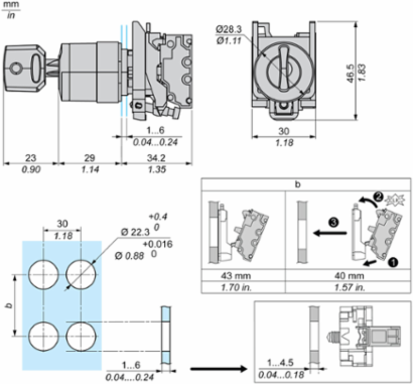

Depth	87 mm

Weight	128 g

Complementary Attributes

Ie Rated Operational Current	6 A 120 V, AC-15, A300 IEC 60947-5-13 A 240 V, AC-15, A300 IEC 60947-5-10.55 A 125 V, DC-13, Q300 IEC 60947-5-10.27 A 250 V, DC-13, Q300 IEC 60947-5-1
Uimp Rated Impulse Withstand Voltage	4 kV IEC 60947-1

Ui Rated Insulation Voltage	300 V 3)IEC 60947-1
Us Rated Supply Voltage	600 V

Important Information Attributes

Persona Type Ids	BM9, EU, LC, OM, OM8, PB, SC, SI, VR
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Customizable	no, 0
Certificate Agency	EAC, IECEE CB Scheme, CCC, UL, CSA
Carbon Footprint Of The Distribution Phase A4	0.016738532, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase A5	0 kg CO2 eq., 0.0160923451
Carbon Footprint Of The Use Phase B2 B3 B4 B6	0.1 kg CO2 eq., 0.113922
Local Publishable Date	2026-08-10
Return Indicator	Y
Weee Product Category	5
Eoli Availability Display	Yes
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
China Rohs Label	5
Without Single Use Plastic	No
Tier Id	2
Function Option Id	STANDARD
Product Kit Identifier	N
Compatibility Code	XB4
Contacts Material	silver alloy (Ag/Ni)
Contacts Usage	standard contacts
Fixing Collar Material	zamak
Mechanical Durability	10000000 cycles
Operator Position Information	3 positions +/- 45°
Overvoltage Category	class I conforming to IEC 60536
Product Availability	Non-Stock - Not normally stocked in distribution facility
Protective Treatment	TH
Resistance To High Pressure Washer	7000000 Pa 55 °C 0.1 m
Sale Per Indivisible Quantity	1
Software Version	v5.9.4
Torque Value	0.14 N.m NO changing electrical state
Type Of Keylock	key 455
Vibration Resistance	5 gn (f= 10-500 Hz) conforming to IEC 60068-2-625 mm peak to peak (f= 2-10 Hz) conforming to IEC 60068-2-6

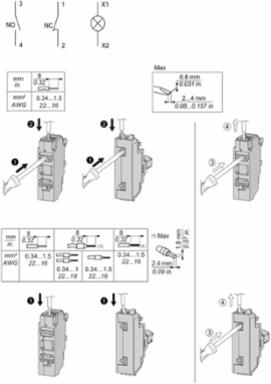

Connections Terminals	push-in, = 1 x 0.34 mm² without wire end ferrule IEC 60947-1
Data Source	extrapolated product
Width Nominal	30 mm
Nbr. Of Units In Pkg.	1
Ith Conventional Free Air Thermal Current	10 A IEC 60947-5-1
Warranty In Months	18
Functional Unit Quantity	1
Reference Lifetime In Y	10

Persona Type Names	Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market Segmentation	Commercial, Industrial
Shock Resistance	25 gn 6 ms) 1000 shocks on each axis IEC 60068-2-27, 30 gn 18 ms) half sine wave acceleration IEC 60068-2-2750 gn 11 ms) half sine wave acceleration IEC 60068-2-27

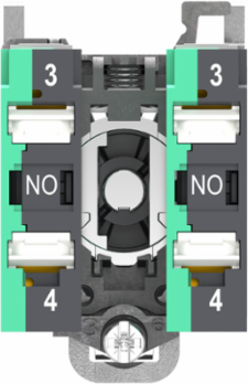

Terminals Description Iso N°1	(23-24)NO, (23-24)NO
Carbon Footprint Of The End Of Life Phase C1 To C4	0.0786689008, 0.1 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase A1 To A3	0.8 kg CO2 eq., 0.8472564268
Local Data Status	Publishable
Pre Comm Date	2024-05-23
Weee Scope	In
Scope Perimeter	At least in Europe
End Of Life Doc Ref	ENVEOLI2308006EN
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	Yes
Rohs Eur Conformity Date	1930
China Rohs In Scope	Yes
With Recycled Cardboard	No
Product Contributes To Saved And Avoided Emissions	No
Tier	2
Function Option	Standard
Bezel Material	chromium plated metal
Contact Operation	slow-break
Contacts Type And Composition	2 NO
Device Short Name	XB4
Head Type	standard
Mounting Diameter	22.5 mm
Operator Profile	black key switch
Positive Opening	without
Product Or Component Type	selector switch
Range Of Product	Harmony XB4
Returnability	Yes
Shape Of Signaling Unit Head	round
Sustainable Packaging	No
Total Lifecycle Carbon Footprint	1 kg CO2 eq.
Type Of Operator	stay put
Weee Label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Database Version	2022-01
Height Nominal	47 mm
Cap/Operator Or Lens Colour	black
Customs Code	8536509025
Short Circuit Protection	10 A cartridge fuse gG IEC 60947-5-1
Functional Unit Description	Key selector switch has 2 positions, operates with a stay-put mechanism with key withdrawal on the left position. It has a metal bezel. This key selector switch provides a versatile interface for controlling your machines. It is easily installed into standard 22mm diameter cut-outs and connected to your control circuits with simple screw-clamp connections.This switch s primary function is to control devices as well as switch between a minimum of two electrical circuits with a power consumption of 0.002 W with use rate of 72% for a period of 10 years and product is adhering to standards EN/IEC 60947-5-1
Functional Unit Unit	Unit

Environment Attributes Main

Ambient Air Temperature For Operation	-40-70 °C, -40-70 °C
Ip Degree Of Protection	IP66 IEC 60529, IP69, IP69K, IP67
Take Back	No
China Rohs Regulation	X
Carbon Footprint	1.0726782048
Environmental Disclosure	ENVPEP2308006EN
Packaging Made With Recycled Cardboard	No
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
Pep Verification Date	2023-08-01
Psr Version	PSR-0005-ed2-2016 03 29

Ambient Air Temperature For Storage	-40-70 °C, -40-70 °C
Nema Degree Of Protection	NEMA 13, NEMA 4X, UL type 4X/13
Recycled Metal Content At Cr Level	0 %
Mercury Free	Yes
Circularity Profile	ENVEOLI2308006EN
Eu Rohs Directive	Compliant By Exemption
Packaging Without Single Use Plastic	No
Pep Code	ENVPEP2308006EN
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent internal review
