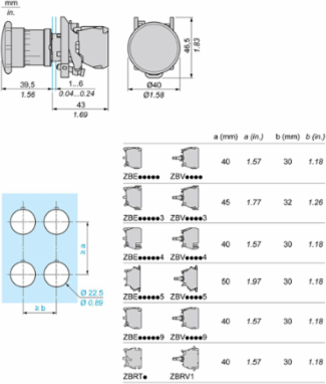

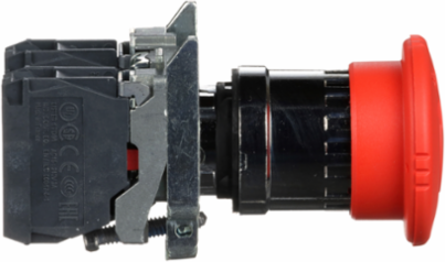

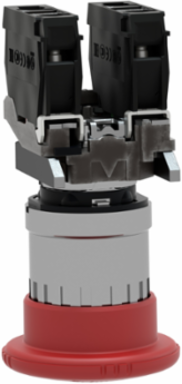

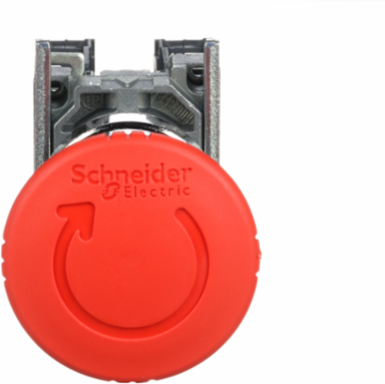

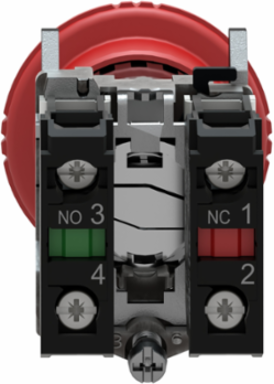

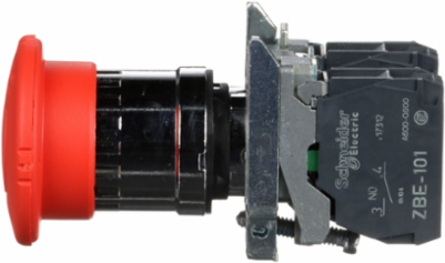

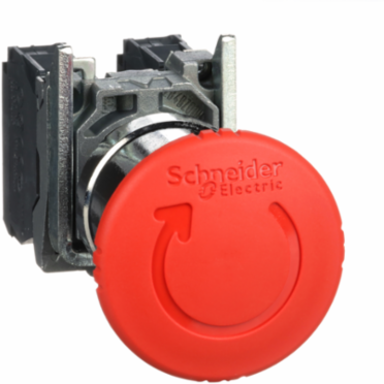

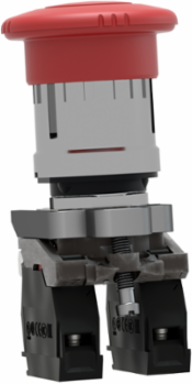

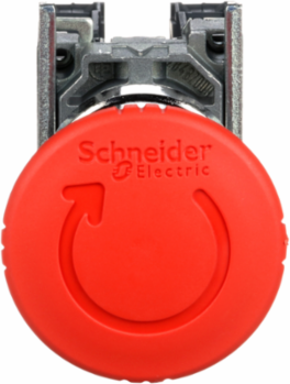

Schneider Electric XB4BS8445 Harmony XB4 Emergency Stop Push Button, 40mm, IP66, Red Mushroom

MPN: XB4BS8445
PPN: SCH-XB4BS8445

If you can't find the product or are unsure which one you need, please use the Product Selector tool below

$179.05

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

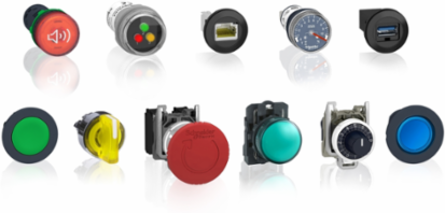

Harmony 22 mm modular push buttons, selector switches, pilot lights are designed for industry. This range combines simplicity of setup, flexibility and a robust construction. An ingenious locking system consisting of a snap fit head and body that can be tightened with a single screw but still ensuring an easy and yet secure mounting. Harmony XB4/ZB4 are 22 mm chromium plated metal modular push buttons, selector switches and pilot lights connecting to fully metal mounting collar. The operators can be purchased as complete operators or various modules that can be assembled to meet the user’s specific requirement. Harmony XB5/ZB5 are 22 mm plastic modular push buttons, selector switches, pilot lights. The operator can have a round and square plastic bezel. The contacts can be used for low load electrical contact and high power applications. Shake proof connection screws make periodic retightening unnecessary. A complete set of accessories to provide a solution for applications where exposure to high pressure cleaning, dust and extreme temperatures is an everyday occurrence. These harmony 22mm push buttons are used by machine manufacturers (automotive, textiles, timber) and control system panel builders. Certified and approved for meeting requirements throughout all continents: EN/IEC, UL, NEMA, CSA, CCC, Gost, JIS and many more. They have UL and CE markings and have ratings up to IP66 and IP69K.

Features

Engineered with a specialized mechanical safety latching mechanism, this Emergency Stop pushbutton features true "trigger action." This design means the electrical contacts will not change state until the mechanism is fully and completely latched down, preventing operators from accidentally jogging or cycling machinery via an incomplete push. Once pressed, the button mechanically locks in place and requires a deliberate twist-to-release motion to reset, satisfying strict international safety standards for industrial machinery shutdown/
This complete control assembly comes factory-equipped with a dual contact block configuration consisting of 1 Normally Open (1 NO) and 1 Normally Closed (1 NC) slow-break contacts. The NC contact features a certified positive opening mechanism (conforming to IEC 60947-1), which mechanically forces the contacts apart to break the safety circuit even if the contacts experience minor welding from an overcurrent event. The complementary NO contact provides an immediate digital signal path back to a PLC or local alarm beacon to flag exactly which station initiated the shutdown.
Built under Schneider's premium Harmony XB4 metal architecture, this device utilizes a rugged, chromium-plated metal bezel paired with a heavy-duty Zamak fixing collar. This solid metallic sub-structure delivers exceptional impact resistance and mechanical torque retention inside the panel cutout, preventing the operator head from cracking, twisting, or shearing off when struck forcefully by an operator during a high-stress workplace emergency.
Boasting an elite tier of environmental sealing ratings including IP66, IP67, IP69, and IP69K, this safety switch is entirely dust-tight and waterproof.
Featuring a standard 40mm bright red mushroom-headed actuator, this highly visible device mounts directly into any standard 22.5mm industrial panel cutout. The compact physical layout (measuring 47mm wide by 82mm deep) utilizes universal vibration-resistant screw-clamp terminals that accept flathead or Philips screwdrivers. It carries complete UL 508, CSA C22.2 No 14, and ISO 13850 compliance, enabling rapid deployment in any commercial or heavy industrial field control enclosure without layout modifications.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Czechia, France, Mexico, United States

Depth	82 mm

Important Information Attributes

Persona Type Ids	BM9, EU, LC, OM, OM8, PB, SC, SI, VR
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Customizable	no, 0
Electrical Reliability	λ < 10exp(-6) 5 V 1 mA in clean environment IEC 60947-5-4, λ < 10exp(-8) 17 V 5 mA in clean environment IEC 60947-5-4
Reset	turn to release, turn to release
Type Of Operator 3 Type Of Operator	trigger action and mechanical latching
[Ie] Rated Operational Current	3 A 240 V, AC-15, A600 IEC 60947-5-16 A 120 V, AC-15, A600 IEC 60947-5-10.1 A 600 V, DC-13, Q600 IEC 60947-5-10.27 A 250 V, DC-13, Q600 IEC 60947-5-10.55 A 125 V, DC-13, Q600 IEC 60947-5-1, 1.2 A 600 V, AC-15, A600 IEC 60947-5-1
Carbon Footprint Of The Distribution Phase [A4]	0.0167730119, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]	0 kg CO2 eq., 0.0005626224
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]	kg CO2 eq., 0
Local Publishable Date	2026-03-26
Stocking Flag	Y
Weee Scope	In
Scope Perimeter	At least in Europe
End Of Life Doc Ref	ENVEOLI2201004EN
Reach Full Compliance Status	Free of Substances of Very High Concern above the threshold
Reach Compliance Directive	Free of Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant
Rohs Eur Full Compliance Status	Compliant
China Rohs Label	1
Without Single Use Plastic	No
Tier Id	1
Function Option Id	STANDARD
Product Kit Identifier	N
Average Percentage Of Recycled Plastic Content	16 %
Compatibility Code	XB4
Contacts Material	silver alloy (Ag/Ni)
Contacts Usage	standard contacts
Electrical Shock Protection Class	class I conforming to IEC 60536
Head Type	standard
Mounting Diameter	22.5 mm
Operating Travel	1.5 mm NC changing electrical state)2.6 mm NO changing electrical state)4.3 mm total travel)
Positive Opening	with IEC 60947-5-1 appendix K
Product Repair Index	A
Range Of Product	Harmony XB4
Returnability	Yes
Shape Of Signaling Unit Head	round
Software Version	EIME v5.9.3
Tightening Torque	0.8-1.2 N.m IEC 60947-1
Type Of Operator	trigger action and mechanical latching
Weee Label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Pep Code	ENVPEP2201004EN
Pep Verification Date	2022-01-01
Psr Version	PSR-0005-ed2-EN-2016 03 29
Data Source	extrapolated product
Reference Lifetime In Y	20
Energy Model - Installation [A5]	Electricity mix; AC; 120V; US
Energy Model - End Of Life [C1-c4]	Electricity mix; AC; 120V; US
Height Nominal	47 mm
[Ith] Conventional Free Air Thermal Current	10 A IEC 60947-5-1
[Uimp] Rated Impulse Withstand Voltage	6 kV IEC 60947-1
Connections - Terminals	screw clamp terminals, = 1 x 0.22 mm² without cable end IEC 60947-1
Nbr. Of Units In Pkg.	1
Product Repair Index - Dam Document Id	XB4BS8442-ENVREPAIR-A-EN
Warranty (In Months)	18

Persona Type Names	Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market Segmentation	Commercial, Industrial
Electrical Durability	1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C
Product Or Component Type	emergency switching off push-button, emergency stop push-button
Shape Of Screw Head	cross Philips no 1, cross pozidriv No 1slotted flat Ø 4 mm, slotted flat Ø 5.5 mm
Certificate Agency	CSA, LROS (Lloyds register of shipping), BV, UL Listed, DNV
Terminals Description Iso N°1	(13-14)NO, (13-14)NO
Carbon Footprint Of The End-of-life Phase [C1 To C4]	0.0151026299, 0 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase [A1 To A3]	1 kg CO2 eq., 1.3728553538
Local Data Status	Publishable
Return Indicator	Y
Stock Policy	1
Weee Product Category	5
Eoli Availability Display	Yes
Product Repair Index Dam Doc	XB4BS8442-ENVREPAIR-A-EN
Reach Full Compliance Status Id	NOT_CONTAINING_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	1930
China Rohs In Scope	Yes
With Recycled Cardboard	No
Product Contributes To Saved And Avoided Emissions	No
Tier	1
Function Option	Standard
Average Percentage Of Recycled Metal Content	20 %
Bezel Material	chromium plated metal
Contact Operation	slow-break
Contacts Type And Composition	1 NO + 1 NC
Device Short Name	XB4
Fixing Collar Material	zamak
Mechanical Durability	300000 cycles
Operating Force	44 N
Operator Profile	red mushroom Ø 40 mm, unmarked
Product Availability	Stock - Normally stocked in distribution facility
Protective Treatment	TH
Resistance To High Pressure Washer	7000000 Pa 55 °C 0.1 m
Sale Per Indivisible Quantity	1
Shock Resistance	30 gn 18 ms) half sine wave acceleration IEC 60068-2-2750 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Sustainable Packaging	No
Total Lifecycle Carbon Footprint	1 kg CO2 eq.
Vibration Resistance	5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
Contacts Composition 6	1 NO + 1 NC
Database Version	2016-11
Pcr Version	PCR-ed3-EN-2015 04 02
Type Of Verification For The Pep	Independent internal review
Functional-unit Description	Emergency stop push button which helps to shut off machinery in an emergency situation when there is a risk of injury or the workflow requires stopping. Product meets the international standards as EN/IEC 60947-1 and EN/IEC 60204 -1 during 20 years.
Energy Model - Manufacturing [A1-a3]	Energy model used: Pisek, Czech Republic
Energy Model - Use [B6]	Electricity mix; AC; 120V; US
Recyclability Potential In %	59
Width Nominal	40 mm
[Ui] Rated Insulation Voltage	600 V 3)IEC 60947-1
Cap/Operator Or Lens Colour	red
Short-circuit Protection	10 A cartridge fuse gG IEC 60947-5-1
Package Weight(Lbs)	132.000 g
Take-back	No
Customs Code	8504909690

Environment Attributes Main

Ambient Air Temperature For Operation	-40-70 °C, -40-70 °C
Ip Degree Of Protection	IP66 IEC 60529, IP67, IP69, IP69K
Take Back	No
Recycled Metal Content At Cr Level	20 %
Toxic Heavy Metal Free	Yes
Carbon Footprint	1.405293618
Environmental Disclosure	ENVPEP2201004EN
Packaging Made With Recycled Cardboard	No
Reach Free Of Svhc	Yes
Pep Code	ENVPEP2201004EN
Pcr Version	PCR-ed3-EN-2015 04 02
Type Of Verification For The Pep	Independent internal review

Ambient Air Temperature For Storage	-40-70 °C, -40-70 °C
Nema Degree Of Protection	NEMA 13, NEMA 4X, UL type 4X/13
Reach Free Shvc	Yes
China Rohs Regulation	X
Mercury Free	Yes
Circularity Profile	ENVEOLI2201004EN
Eu Rohs Directive	Compliant
Packaging Without Single Use Plastic	No
Reach Regulation	Free of Substances of Very High Concern above the threshold
Pep Verification Date	2022-01-01
Psr Version	PSR-0005-ed2-EN-2016 03 29
