Weidmuller 1937910000 KLIPPON K11 VMQ RAL7001

MPN: 1937910000
PPN: WDM-1937910000

$47.79

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

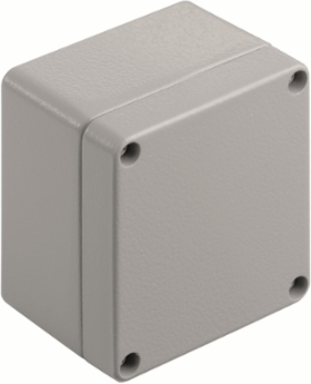

Klippon K (aluminium empty enclosure), Empty enclosure, Aluminium enclosure, Height: 80 mm, Width: 75 mm, Depth: 57 mm, Material: Aluminium AlSi12, Powder-coated, textured, Silver grey

Documentation & Downloads

Specifications

Approvals

Approvals	CULUS, DNV GL, EAC, MARITREG
UL File Number Search	E197061

ROHS	Conform

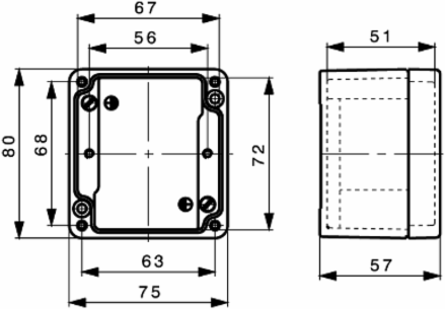

Dimensions And Weights

Width	75 mm
Height	80 mm
Depth	57 mm
Mounting dimension - width	63 mm
Net weight	319.6 g

Width (inches)	2.953 inch
Height (inches)	3.15 inch
Depth (inches)	2.244 inch
Mounting dimension - height	52 mm

Horizontal Assembly

WDU 2,5 / ZDU 2,5 / IDU 2,5	1x5

WDU 4 / ZDU 4	1x4

Classifications

ETIM 6.0	EC000261
eClass 9.0	27-18-01-01
eClass 10.0	27-18-01-01

ETIM 7.0	EC000261
eClass 9.1	27-18-92-90

Environmental Product Compliance

REACH SVHC	Lead 7439-92-1

Vertical Assembly

WDU 2,5 / ZDU 2,5 / IDU 2,5	1x1*

WDU 4 / ZDU 4	1x1*

Cable Glands, Top/Bottom

M12	2
M20	1

M16	2
M25	1

Cable Glands, Right

M12	2
M20	1

M16	2

Cable Glands, Left

M12	2
M20	1

M16	2

General Information

Areas of use	Process industry, Transportation, Marine engineering, Packaging industry, Harbour facilities, Machine construction
Material thickness of cover	2.5 mm
Torque for lid screws	2.5 Nm
Seal material	Silicone
Operating temperature, min.	-60 °C
Impact resistance	10.00 J
Note: protection class	IP68 (t=72h, h=1m)
Lid attachment	M4 torx stainless steel screws with slot

Material thickness	4 mm
Material thickness of enclosure	4 mm
Material	Aluminium AlSi12
Surface finish	Powder-coated, textured
Operating temperature, max.	135 °C
Protection degree	IP66, IP67, IP68
Enclosure attachment	Holes 4 mm
Integral fixing	Threaded holes M4
