Weidmuller 0342100000 KLIPPON K2
- MPN: 0342100000
- PPN: WDM-0342100000
CAD
$45.70
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

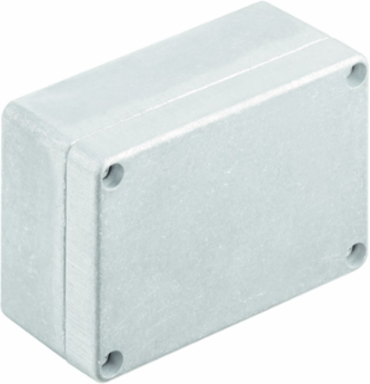

Klippon K (aluminium empty enclosure), Empty enclosure, Aluminium enclosure, Height: 70 mm, Width: 100 mm, Depth: 45 mm, Material: Aluminium AlSi12, untreated, silver
Documentation & Downloads
Specifications
Approvals
- Approvals
- CE, CULUS, DNV GL, EAC, MARITREG
- UL File Number Search
- E197061
ROHSConform

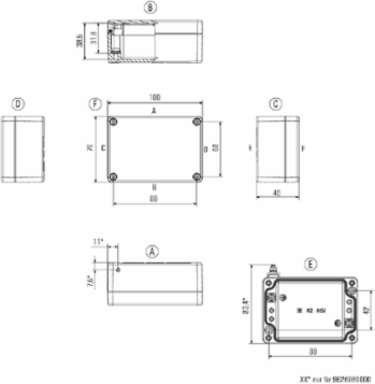

Dimensions And Weights
- Width
- 100 mm
- Height
- 70 mm
- Depth
- 45 mm
- Mounting dimension - width
- 88 mm
- Weight
- 280 g
Width (inches)3.937 inch
Height (inches)2.756 inch
Depth (inches)1.772 inch
Mounting dimension - height42 mm
Net weight310.2 g
Horizontal Assembly
- WDU 2,5 / ZDU 2,5 / IDU 2,5
- 1x10
Classifications
- ETIM 6.0
- EC000261
- eClass 9.0
- 27-18-01-01
- eClass 10.0
- 27-18-01-01
ETIM 7.0EC000261
eClass 9.127-18-92-90
UNSPSC31-26-15-02
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
Cable Glands, Top/Bottom
- M12
- 3
- M20
- 2
M163
Cable Glands, Right
- M12
- 1
M161
Cable Glands, Left
- M12
- 1
M161
General Information
- Areas of use
- Process industry, Transportation, Marine engineering, Packaging industry, Harbour facilities, Machine construction
- Material thickness of cover
- 3 mm
- Torque for lid screws
- 2.5 Nm
- Seal material
- Chloroprene
- Operating temperature, min.
- -40 °C
- Impact resistance
- 10.00 J
- Note: protection class
- IP68 (t=72h, h=1m)
- Lid attachment
- M4 torx stainless steel screws with slot
Material thickness3.5 mm
Material thickness of enclosure3.5 mm
MaterialAluminium AlSi12
Surface finishuntreated
Operating temperature, max.80 °C
Protection degreeIP66, IP67, IP68
Enclosure attachmentHoles 4 mm
Integral fixingThreaded holes M4
Certificate Numbers Enclosure
- Certificate No. (GERMLLOYD)
- TAE00002SM
- Certificate no. (cULus)
- E197061
Certificate No. (MARITREG)14.40040.250
