Weidmuller 9529160000 KLIPPON K3 RAL7001

MPN: 9529160000
PPN: WDM-9529160000

$129.99

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

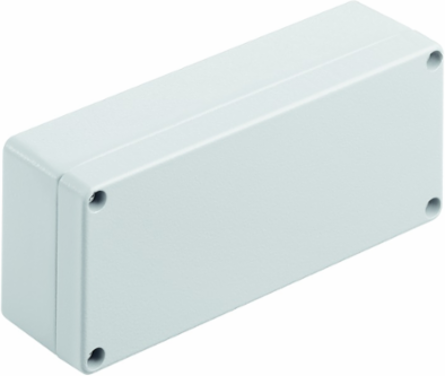

Klippon K (aluminium empty enclosure), Empty enclosure, Aluminium enclosure, Height: 70 mm, Width: 165 mm, Depth: 45 mm, Material: Aluminium AlSi12, Powder-coated, textured, Silver grey

Documentation & Downloads

Specifications

Approvals

Approvals	CE, CULUS, DNV GL, EAC, MARITREG
UL File Number Search	E197061

ROHS	Conform

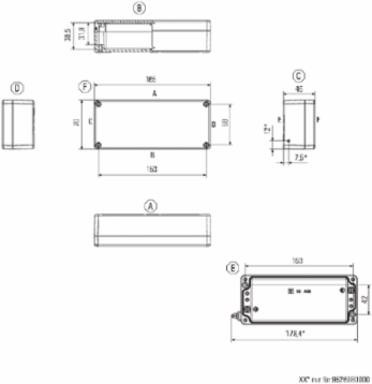

Dimensions And Weights

Width	165 mm
Height	70 mm
Depth	45 mm
Mounting dimension - width	153 mm
Weight	400 g

Width (inches)	6.496 inch
Height (inches)	2.756 inch
Depth (inches)	1.772 inch
Mounting dimension - height	42 mm
Net weight	452 g

Horizontal Assembly

WDU 2,5 / ZDU 2,5 / IDU 2,5	1x22

Classifications

ETIM 6.0	EC000261
eClass 9.0	27-18-01-01
eClass 10.0	27-18-01-01

ETIM 7.0	EC000261
eClass 9.1	27-18-92-90
UNSPSC	31-26-15-02

Environmental Product Compliance

REACH SVHC	Lead 7439-92-1

Cable Glands, Top/Bottom

M12	6
M20	4

M16	5

Cable Glands, Right

M12	1

M16	1

Cable Glands, Left

M12	1

M16	1

General Information

Areas of use	Process industry, Transportation, Marine engineering, Packaging industry, Harbour facilities, Machine construction
Material thickness of cover	3 mm
Torque for lid screws	2.5 Nm
Seal material	Chloroprene
Operating temperature, min.	-40 °C
Impact resistance	10.00 J
Note: protection class	IP68 (t=72h, h=1m)
Lid attachment	M4 torx stainless steel screws with slot

Material thickness	3.5 mm
Material thickness of enclosure	3.5 mm
Material	Aluminium AlSi12
Surface finish	Powder-coated, textured
Operating temperature, max.	80 °C
Protection degree	IP66, IP67, IP68
Enclosure attachment	Holes 4 mm
Integral fixing	Threaded holes M4
