Weidmuller 1565260000 KLIPPON K32

MPN: 1565260000
PPN: WDM-1565260000

$71.75

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

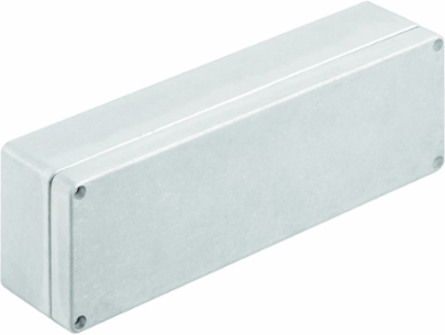

Klippon K (aluminium empty enclosure), Empty enclosure, Aluminium enclosure, Height: 80 mm, Width: 250 mm, Depth: 55 mm, Material: Aluminium AlSi12, untreated, silver

Documentation & Downloads

Specifications

Approvals

Approvals	CE, CULUS, DNV GL, EAC, MARITREG
UL File Number Search	E197061

ROHS	Conform

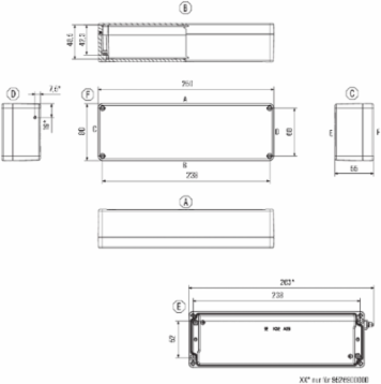

Dimensions And Weights

Width	250 mm
Height	80 mm
Depth	55 mm
Mounting dimension - width	238 mm
Weight	710 g

Width (inches)	9.842 inch
Height (inches)	3.15 inch
Depth (inches)	2.165 inch
Mounting dimension - height	52 mm
Net weight	753 g

Horizontal Assembly

WDU 2,5 / ZDU 2,5 / IDU 2,5	1x38

WDU 4 / ZDU 4	1x32

Classifications

ETIM 6.0	EC000261
eClass 9.0	27-18-01-01
eClass 10.0	27-18-01-01

ETIM 7.0	EC000261
eClass 9.1	27-18-92-90
UNSPSC	31-26-15-02

Environmental Product Compliance

REACH SVHC	Lead 7439-92-1

Cable Glands, Top/Bottom

M12	15 ???New14???
M20	7 ???New14???

M16	9
M25	6

Cable Glands, Right

M12	2
M20	1

M16	2

Cable Glands, Left

M12	2
M20	1

M16	2

General Information

Areas of use	Process industry, Transportation, Marine engineering, Packaging industry, Harbour facilities, Machine construction
Material thickness of cover	2.5 mm
Torque for lid screws	2.5 Nm
Seal material	Chloroprene
Operating temperature, min.	-40 °C
Impact resistance	10.00 J
Note: protection class	IP68 (t=72h, h=1m)
Lid attachment	M4 torx stainless steel screws with slot

Material thickness	4 mm
Material thickness of enclosure	4 mm
Material	Aluminium AlSi12
Surface finish	untreated
Operating temperature, max.	80 °C
Protection degree	IP66, IP67, IP68
Enclosure attachment	Holes 4 mm
Integral fixing	Threaded holes M4
