Weidmuller 1565270000 KLIPPON K41
- MPN: 1565270000
- PPN: WDM-1565270000
CAD
$87.69
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

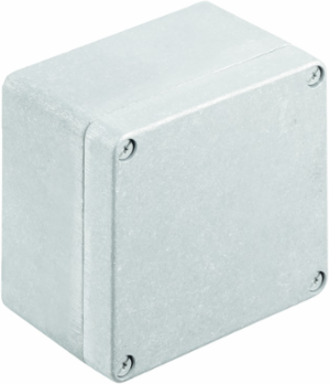

Klippon K (aluminium empty enclosure), Empty enclosure, Aluminium enclosure, Height: 120 mm, Width: 122 mm, Depth: 81 mm, Material: Aluminium AlSi12, untreated, silver
Documentation & Downloads
Specifications
Approvals
- Approvals
- CE, CULUS, DNV GL, EAC, MARITREG
- UL File Number Search
- E197061
ROHSConform

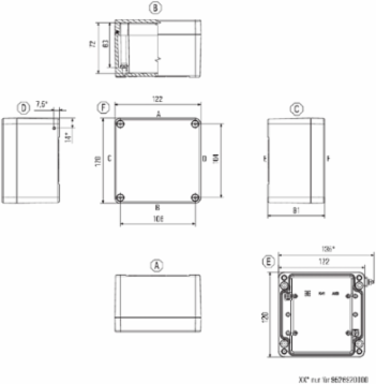

Dimensions And Weights
- Width
- 122 mm
- Height
- 120 mm
- Depth
- 81 mm
- Mounting dimension - width
- 106 mm
- Weight
- 840 g
Width (inches)4.803 inch
Height (inches)4.724 inch
Depth (inches)3.189 inch
Mounting dimension - height82 mm
Net weight919 g
Horizontal Assembly
- WDU 10 / ZDU 10
- 1x6
- WDU 4 / ZDU 4
- 1x11
WDU 2,5 / ZDU 2,5 / IDU 2,51x13
WDU 6 / ZDU 61x8
Classifications
- ETIM 6.0
- EC000261
- eClass 9.0
- 27-18-01-01
- eClass 10.0
- 27-18-01-01
ETIM 7.0EC000261
eClass 9.127-18-92-90
UNSPSC31-26-15-02
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
Cable Glands, Top/Bottom
- M12
- 6
- M20
- 3
- M32
- 1
M166
M252
Cable Glands, Right
- M12
- 4
- M20
- 2
- M32
- 1
M164
M251
Cable Glands, Left
- M12
- 4
- M20
- 2
- M32
- 1
M164
M251
General Information
- Areas of use
- Process industry, Transportation, Marine engineering, Packaging industry, Harbour facilities, Machine construction
- Material thickness of cover
- 4 mm
- Torque for lid screws
- 2.5 Nm
- Seal material
- Chloroprene
- Operating temperature, min.
- -40 °C
- Impact resistance
- 10.00 J
- Note: protection class
- IP68 (t=72h, h=1m)
- Lid attachment
- M6 torx stainless steel screws with slot
Material thickness4.5 mm
Material thickness of enclosure4.5 mm
MaterialAluminium AlSi12
Surface finishuntreated
Operating temperature, max.80 °C
Protection degreeIP66, IP67, IP68
Enclosure attachmentHoles 6 mm
Integral fixingThreaded holes M5
Certificate Numbers Enclosure
- Certificate No. (GERMLLOYD)
- TAE00002SM
- Certificate no. (cULus)
- E197061
Certificate No. (MARITREG)14.40040.250
