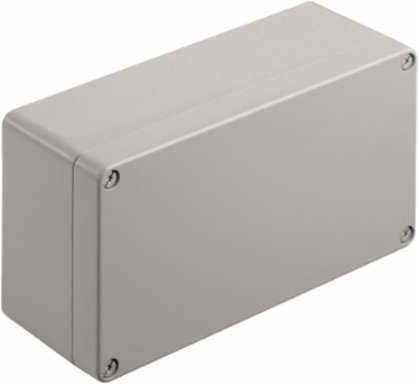

Weidmuller 1937750000 KLIPPON K51 VMQ RAL7001
- MPN: 1937750000
- PPN: WDM-1937750000
CAD
$275.72
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Klippon K (aluminium empty enclosure), Empty enclosure, Aluminium enclosure, Height: 120 mm, Width: 220 mm, Depth: 81 mm, Material: Aluminium AlSi12, Powder-coated, textured, Silver grey
Documentation & Downloads
Specifications
Approvals
- Approvals
- CULUS, DNV GL, EAC, MARITREG
- UL File Number Search
- E197061
ROHSConform

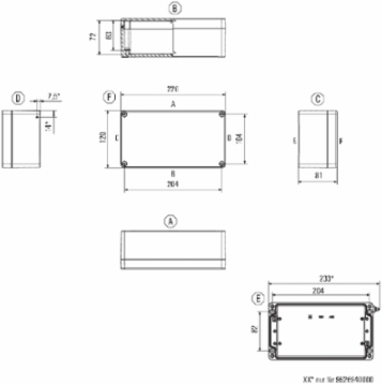

Dimensions And Weights
- Width
- 220 mm
- Height
- 120 mm
- Depth
- 81 mm
- Mounting dimension - width
- 204 mm
- Net weight
- 1,411 g
Width (inches)8.661 inch
Height (inches)4.724 inch
Depth (inches)3.189 inch
Mounting dimension - height82 mm
Horizontal Assembly
- WDU 10 / ZDU 10
- 1x15
- WDU 4 / ZDU 4
- 1x26
WDU 2,5 / ZDU 2,5 / IDU 2,51x31
WDU 6 / ZDU 61x19
Classifications
- ETIM 6.0
- EC000261
- eClass 9.0
- 27-18-01-01
- eClass 10.0
- 27-18-01-01
ETIM 7.0EC000261
eClass 9.127-18-92-90
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
Cable Glands, Top/Bottom
- M12
- 23
- M20
- 8
- M32
- 3
M1614 ???New14???
M255
M403
Cable Glands, Right
- M12
- 6
- M20
- 2
- M32
- 1
M163
M251
Cable Glands, Left
- M12
- 6
- M20
- 2
- M32
- 1
M163
M251
General Information
- Areas of use
- Process industry, Transportation, Marine engineering, Packaging industry, Harbour facilities, Machine construction
- Material thickness of cover
- 4 mm
- Torque for lid screws
- 2.5 Nm
- Seal material
- Silicone
- Operating temperature, min.
- -60 °C
- Impact resistance
- 10.00 J
- Note: protection class
- IP68 (t=72h, h=1m)
- Lid attachment
- M6 torx stainless steel screws with slot
Material thickness4.5 mm
Material thickness of enclosure4.5 mm
MaterialAluminium AlSi12
Surface finishPowder-coated, textured
Operating temperature, max.135 °C
Protection degreeIP66, IP67, IP68
Enclosure attachmentHoles 6 mm
Integral fixingThreaded holes M5
Certificate Numbers Enclosure
- Certificate No. (GERMLLOYD)
- TAE00002SM
- Certificate no. (cULus)
- E197061
Certificate No. (MARITREG)14.40040.250
