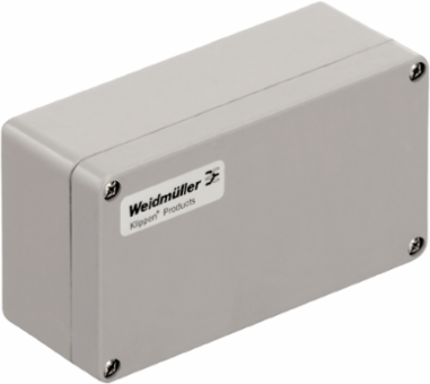

Weidmuller 1305830000 KLIPPON POK 081606
- MPN: 1305830000
- PPN: WDM-1305830000
CAD
$112.63
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Klippon POK (polyester empty enclosure), Empty enclosure, Height: 75 mm, Width: 160 mm, Depth: 56 mm, Material: Glass fibre-reinforced polyester, untreated, polished, Silver grey
Documentation & Downloads
Specifications
Approvals
- Approvals
- CULUS, EAC, GERMLLOYD, LLOYDSREG
- UL File Number Search
- E256877
ROHSConform
General Information On Accessories
- Material
- Glass fibre-reinforced polyester
- Mounting dimension - height
- 45 mm
- Surface finish
- untreated, polished
Material thickness4.19 mm
Mounting dimension - width148 mm

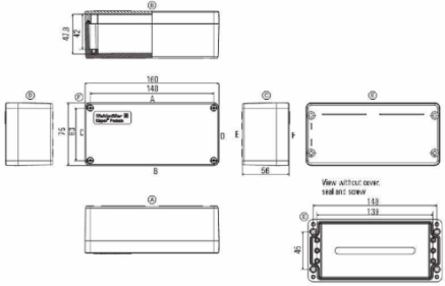

Dimensions And Weights
- Width
- 160 mm
- Height
- 75 mm
- Height of lowest version
- 56 mm
- Depth (inches)
- 2.205 inch
- Mounting dimension - height
- 45 mm
Width (inches)6.299 inch
Height (inches)2.953 inch
Depth56 mm
Mounting dimension - width148 mm
Net weight250 g
Horizontal Assembly
- WDU 2,5 / ZDU 2,5 / IDU 2,5
- 1x20
WDU 4 / ZDU 41x17
Classifications
- ETIM 6.0
- EC000261
- eClass 9.0
- 27-18-01-01
- eClass 10.0
- 27-18-01-01
ETIM 7.0EC000261
eClass 9.127-18-92-90
Cable Glands, Top/Bottom
- M12
- 11
- M20
- 4
M165
M253
Cable Glands, Right
- M12
- 1
- M20
- 1
M161
Cable Glands, Left
- M12
- 1
- M20
- 1
M161
General Information
- Areas of use
- Harbour facilities, Machine construction, Process industry, Transportation
- Material thickness
- 4.19 mm
- Material thickness of enclosure
- 4.19 mm
- Standards
- DIN EN 62208 - Empty enclosure standard
- UL 94 flammability rating
- V-0
- Seal material
- Chloroprene
- Operating temperature, min.
- -40 °C
- Impact resistance
- IK 08 according to (IEC 62262 and DIN EN 50102)
- Enclosure attachment
- Installation through the housing rear wall, Fixing lugs
Installation adviceDirect mounting, Mounting straps
Material thickness of cover3.5 mm
Required tool9008540000
Torque for lid screws2.5 Nm
MaterialGlass fibre-reinforced polyester
Surface finishuntreated, polished
Operating temperature, max.100 °C
Protection degreeIP66
Lid attachmentSlotted/Phillips screws
Certificate Numbers Enclosure
- Certificate no., assembled enclosure (EAC)
- RU C-DE.ГБ08.B.01328
- Certificate No. (GERMLLOYD)
- TAE00002R2
Certificate no., empty enclosure (EAC)RU C-DE.ГБ08.B.00472
Certificate no. (cULus)E256877
