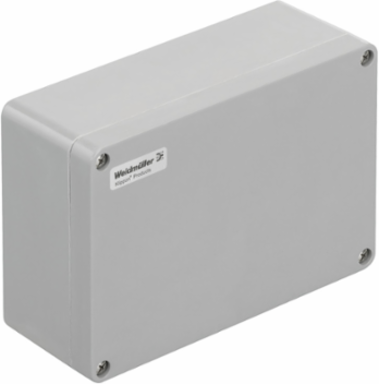

Weidmuller 1305900000 KLIPPON POK 162609
- MPN: 1305900000
- PPN: WDM-1305900000
CAD
$121.27
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Klippon POK (polyester empty enclosure), Empty enclosure, Height: 160 mm, Width: 260 mm, Depth: 90 mm, Material: Glass fibre-reinforced polyester, untreated, polished, Silver grey
Documentation & Downloads
Specifications
Approvals
- Approvals
- CULUS, EAC, GERMLLOYD, LLOYDSREG
- UL File Number Search
- E256877
ROHSConform
General Information On Accessories
- Material
- Glass fibre-reinforced polyester
- Mounting dimension - height
- 110 mm
- Surface finish
- untreated, polished
Material thickness5.99 mm
Mounting dimension - width240 mm

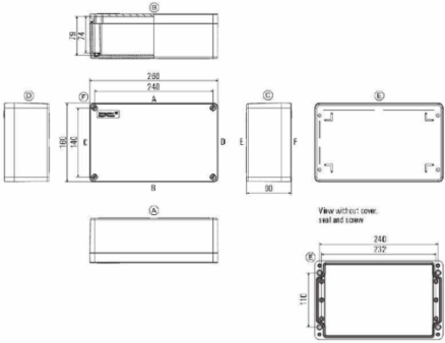

Dimensions And Weights
- Width
- 260 mm
- Height
- 160 mm
- Height of lowest version
- 90 mm
- Depth (inches)
- 3.543 inch
- Mounting dimension - height
- 110 mm
Width (inches)10.236 inch
Height (inches)6.299 inch
Depth90 mm
Mounting dimension - width240 mm
Net weight1,769 g
Horizontal Assembly
- WDU 10 / ZDU 10
- 1x16
- WDU 2,5 / ZDU 2,5 / IDU 2,5
- 1x36
- WDU 6 / ZDU 6
- 1x23
WDU 16 / ZDU 161x16
WDU 4 / ZDU 41x30
Classifications
- ETIM 6.0
- EC000261
- eClass 9.0
- 27-18-01-01
- eClass 10.0
- 27-18-01-01
ETIM 7.0EC000261
eClass 9.127-18-92-90
Cable Glands, Top/Bottom
- M12
- 30 ???New14???
- M20
- 14 ???New14???
- M32
- 4
M1624 ???New14???
M255
M403
Cable Glands, Right
- M12
- 11
- M20
- 4
- M32
- 2
M166
M252
M401
Cable Glands, Left
- M12
- 11
- M20
- 4
- M32
- 2
M166
M252
M401
General Information
- Areas of use
- Harbour facilities, Machine construction, Process industry, Transportation
- Material thickness
- 5.99 mm
- Material thickness of enclosure
- 5.99 mm
- Standards
- DIN EN 62208 - Empty enclosure standard
- UL 94 flammability rating
- V-0
- Seal material
- Chloroprene
- Operating temperature, min.
- -40 °C
- Impact resistance
- IK 08 according to (IEC 62262 and DIN EN 50102)
- Enclosure attachment
- Installation through the housing rear wall, Fixing lugs
Installation adviceDirect mounting, Mounting straps
Material thickness of cover5 mm
Required tool9008540000
Torque for lid screws2.5 Nm
MaterialGlass fibre-reinforced polyester
Surface finishuntreated, polished
Operating temperature, max.100 °C
Protection degreeIP66
Lid attachmentSlotted/Phillips screws
Certificate Numbers Enclosure
- Certificate no., assembled enclosure (EAC)
- RU C-DE.ГБ08.B.01328
- Certificate No. (GERMLLOYD)
- TAE00002R2
Certificate no., empty enclosure (EAC)RU C-DE.ГБ08.B.00472
Certificate no. (cULus)E256877
