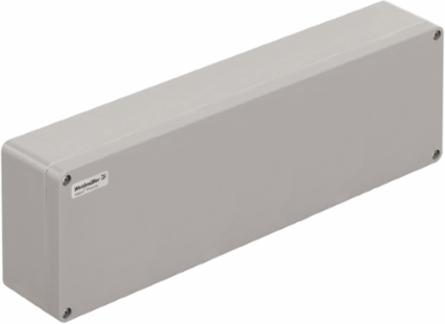

Weidmuller 1305920000 KLIPPON POK 165609
- MPN: 1305920000
- PPN: WDM-1305920000
CAD
$230.60
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Klippon POK (polyester empty enclosure), Empty enclosure, Height: 160 mm, Width: 560 mm, Depth: 90 mm, Material: Glass fibre-reinforced polyester, untreated, polished, Silver grey
Documentation & Downloads
Specifications
Approvals
| Approvals | CULUS, EAC, GERMLLOYD, LLOYDSREG |
|---|---|
| UL File Number Search | E256877 |
| ROHS | Conform |
|---|
General Information On Accessories
| Material | Glass fibre-reinforced polyester |
|---|---|
| Mounting dimension - height | 110 mm |
| Surface finish | untreated, polished |
| Material thickness | 5.99 mm |
|---|---|
| Mounting dimension - width | 540 mm |
Dimensions And Weights
| Width | 560 mm |
|---|---|
| Height | 160 mm |
| Height of lowest version | 90 mm |
| Depth (inches) | 3.543 inch |
| Mounting dimension - height | 110 mm |
| Width (inches) | 22.047 inch |
|---|---|
| Height (inches) | 6.299 inch |
| Depth | 90 mm |
| Mounting dimension - width | 540 mm |
| Net weight | 3,327 g |
Horizontal Assembly
| WDU 10 / ZDU 10 | 1x49 |
|---|---|
| WDU 2,5 / ZDU 2,5 / IDU 2,5 | 1x94 |
| WDU 6 / ZDU 6 | 1x60 |
| WDU 16 / ZDU 16 | 1x41 |
|---|---|
| WDU 4 / ZDU 4 | 1x79 |
Classifications
| ETIM 6.0 | EC000261 |
|---|---|
| eClass 9.0 | 27-18-01-01 |
| eClass 10.0 | 27-18-01-01 |
| ETIM 7.0 | EC000261 |
|---|---|
| eClass 9.1 | 27-18-92-90 |
Cable Glands, Top/Bottom
| M12 | 66 |
|---|---|
| M20 | 32 ???New14??? |
| M32 | 10 |
| M16 | 58 |
|---|---|
| M25 | 12 ???New14??? |
| M40 | 8 |
Cable Glands, Right
| M12 | 11 |
|---|---|
| M20 | 4 |
| M32 | 2 |
| M16 | 6 |
|---|---|
| M25 | 2 |
| M40 | 1 |
Cable Glands, Left
| M12 | 11 |
|---|---|
| M20 | 4 |
| M32 | 2 |
| M16 | 6 |
|---|---|
| M25 | 2 |
| M40 | 1 |
General Information
| Areas of use | Harbour facilities, Machine construction, Process industry, Transportation |
|---|---|
| Material thickness | 5.99 mm |
| Material thickness of enclosure | 5.99 mm |
| Standards | DIN EN 62208 - Empty enclosure standard |
| UL 94 flammability rating | V-0 |
| Seal material | Chloroprene |
| Operating temperature, min. | -40 °C |
| Impact resistance | IK 08 according to (IEC 62262 and DIN EN 50102) |
| Enclosure attachment | Installation through the housing rear wall, Fixing lugs |
| Installation advice | Direct mounting, Mounting straps |
|---|---|
| Material thickness of cover | 5 mm |
| Required tool | 9008540000 |
| Torque for lid screws | 2.5 Nm |
| Material | Glass fibre-reinforced polyester |
| Surface finish | untreated, polished |
| Operating temperature, max. | 100 °C |
| Protection degree | IP66 |
| Lid attachment | Slotted/Phillips screws |
Certificate Numbers Enclosure
| Certificate no., assembled enclosure (EAC) | RU C-DE.ГБ08.B.01328 |
|---|---|
| Certificate No. (GERMLLOYD) | TAE00002R2 |
| Certificate no., empty enclosure (EAC) | RU C-DE.ГБ08.B.00472 |
|---|---|
| Certificate no. (cULus) | E256877 |
