Weidmuller 1025020000 KLIPPON STB 3 MS HT
- MPN: 1025020000
- PPN: WDM-1025020000
CAD
$373.81
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description

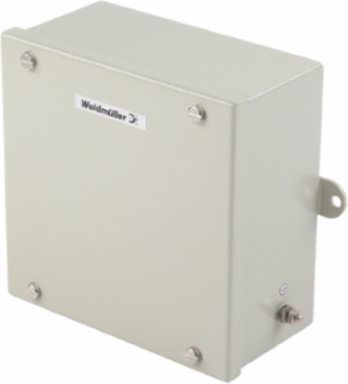

Klippon STB (Small Terminal Box), Empty enclosure, Sheet steel enclosure, Height: 190 mm, Width: 190 mm, Depth: 100 mm, Material: Sheet steel, Powder-coated, Pebble grey
Documentation & Downloads
Specifications
Approvals
- Approvals
- CE, EAC, LLOYDSREG
ROHSConform

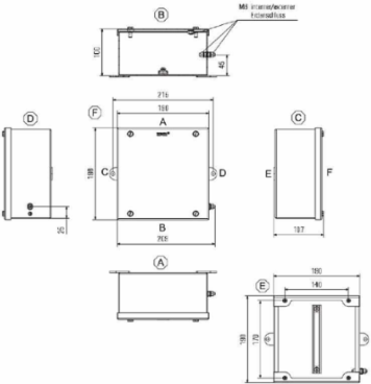

Dimensions And Weights
- Width
- 190 mm
- Height
- 190 mm
- Depth
- 100 mm
- Mounting dimension - width
- 215 mm
- Net weight
- 2,173.9 g
Width (inches)7.48 inch
Height (inches)7.48 inch
Depth (inches)3.937 inch
Weight2,590 g
Housing Earth
- Earth, enclosure, internal
- Welded-on M6 x 16 stainless-steel bolts
Classifications
- ETIM 6.0
- EC000261
- eClass 9.0
- 27-18-01-01
- eClass 10.0
- 27-18-01-01
ETIM 7.0EC000261
eClass 9.127-18-92-90
Vertical Assembly
- WDU 10 / ZDU 10
- 1x15
- WDU 2,5 / ZDU 2,5 / IDU 2,5
- 1x30
- WDU 6 / ZDU 6
- 1x20
WDU 16 / ZDU 161x13
WDU 4 / ZDU 41x25
Cable Glands, Top/Bottom
- M12
- 21
- M20
- 10
- M32
- 3
- M50
- 2
M1615 ???New14???
M258
M403
M631
Cable Glands, Right
- M12
- 21
- M20
- 8
- M32
- 3
- M50
- 1
M1615 ???New14???
M256
M402
Cable Glands, Left
- M12
- 21
- M20
- 10
- M32
- 3
- M50
- 2
M1615 ???New14???
M258
M403
M631
General Information
- Areas of use
- Transportation, Marine engineering, Process industry, Packaging industry
- Material thickness of enclosure
- 1.5 mm
- Seal material
- Silicone
- Operating temperature, min.
- -60 °C
- Impact resistance
- 10 J version standard
- Enclosure attachment
- Welded-on mounting foot with 8-mm holes
- Integral fixing
- TAS 20 rail welded to floor
Material thickness1.5 mm
MaterialSheet steel
Surface finishPowder-coated
Operating temperature, max.120 °C
Protection degreeIP66
Lid attachmentM5 hexagonal screw with slot and 10mm distance across flats
Certificate Numbers Enclosure
- Certificate no., assembled enclosure (EAC)
- RU C-DE.ГБ08.B.01328
- Certificate No. (MARITREG)
- 1.540.041.250
Certificate no., empty enclosure (EAC)RU C-DE.ГБ08.B.00472
