Weidmuller 1002710000 KLIPPON STB 4 SS
- MPN: 1002710000
- PPN: WDM-1002710000
CAD
$823.90
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description

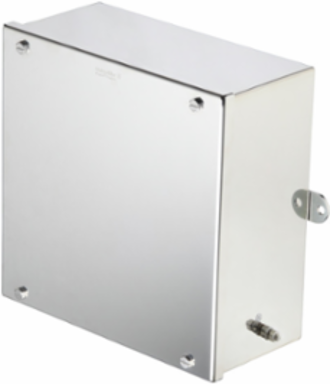

Klippon STB (Small Terminal Box), Empty enclosure, stainless steel enclosure, Height: 250 mm, Width: 250 mm, Depth: 120 mm, Material: Stainless steel 1.4404 (316L), Mirror polished, silver
Documentation & Downloads
Specifications
Approvals
- Approvals
- CE, CULUS, EAC, GERMLLOYD, IBEXUATEX, IECEXIBE, INMETRO, KOREANCERT, LLOYDSREG, MARITREG
- UL File Number Search
- E256877
ROHSConform

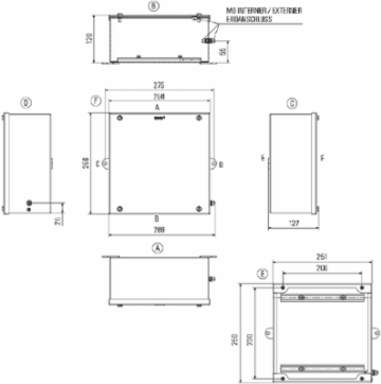

Dimensions And Weights
- Width
- 250 mm
- Height
- 250 mm
- Depth
- 120 mm
- Mounting dimension - width
- 275 mm
- Net weight
- 3,880 g
Width (inches)9.842 inch
Height (inches)9.842 inch
Depth (inches)4.724 inch
Weight4.45 kg
Horizontal Assembly
- WDU 10 / ZDU 10
- 2x22
- WDU 2,5 / ZDU 2,5 / IDU 2,5
- 2x42
- WDU 6 / ZDU 6
- 2x27
WDU 16 / ZDU 162x18
WDU 4 / ZDU 42x35
Classifications
- ETIM 6.0
- EC002503
- eClass 9.0
- 27-18-05-02
- eClass 10.0
- 27-18-05-02
ETIM 7.0EC002503
eClass 9.127-18-05-02
Product Information
- Product information
- the ambient temperature for the assembly will be reduced to +60°C and the surface temperature to +100°C.
Vertical Assembly
- WDU 10 / ZDU 10
- 2x22
- WDU 2,5 / ZDU 2,5 / IDU 2,5
- 2x42
- WDU 6 / ZDU 6
- 2x27
WDU 16 / ZDU 162x18
WDU 4 / ZDU 42x35
Cable Glands, Top/Bottom
- M12
- 24 ???New14???
- M20
- 12 ???New14???
- M32
- 8
- M50
- 3
M1621
M2510
M403
M632
Cable Glands, Right
- M12
- 24 ???New14???
- M20
- 12 ???New14???
- M32
- 8
- M50
- 2
M1621
M2510
M403
M631
Cable Glands, Left
- M12
- 24 ???New14???
- M20
- 12 ???New14???
- M32
- 8
- M50
- 3
M1621
M2510
M403
M631
General Information
- Areas of use
- Explosive risk zone, Packaging industry, Transportation, Process industry, Marine engineering
- Material thickness of enclosure
- 1.5 mm
- Material
- Stainless steel 1.4404 (316L)
- Surface finish
- Mirror polished
- Operating temperature, max.
- 100 °C
- Protection degree
- IP66
- Lid attachment
- M5 hexagonal screw with slot and 10mm distance across flats
Material thickness1.5 mm
Torque for lid screws2.5 Nm
Seal materialSilicone
Operating temperature, min.-60 °C
Impact resistance10 J version standard, 7 J ATEX version
Enclosure attachmentWelded-on mounting foot with 8-mm holes
Integral fixingTAS 20 rail welded to floor
Certificate Numbers Enclosure
- Certificate no. assembled enclosure (ATEX)
- IBExU07ATEX1148
- Certificate no. assembled enclosure (IECEx)
- IECEx IBE 09.0019
- Certificate no., assembled enclosure (EAC)
- RU C-DE.ГБ08.B.01328
- Certificate no. assembled enclosure (INMETRO)
- IEx 13.0003
- Certificate no. assembled enclosure (AEx)
- E223792
- Certificate No. (GERMLLOYD)
- 59358-08
- Certificate no. (cULus)
- E256877
Certificate no. empty enclosure (ATEX)IBExU 07ATEX1147U
Certificate no. empty enclosure (IECEx)IECEx IBE 09.0018U
Certificate no., empty enclosure (EAC)RU C-DE.ГБ08.B.00472
Certificate no. empty enclosure (INMETRO)IEx 13.0002U
Certificate no., assembled enclosure (KOSHA)16-AV4BO-0247X
Certificate No. (MARITREG)15.40041.250
